Xenon environment testing machine

Price:

FOB, CIF

Payment:

L/C, D/P, T/T

Package:

Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Model:

HD-E711

Minimum:

1 SET

Delivery:

15 days after order.

Country:

China

BrandName:

Inquiry

Write a Review

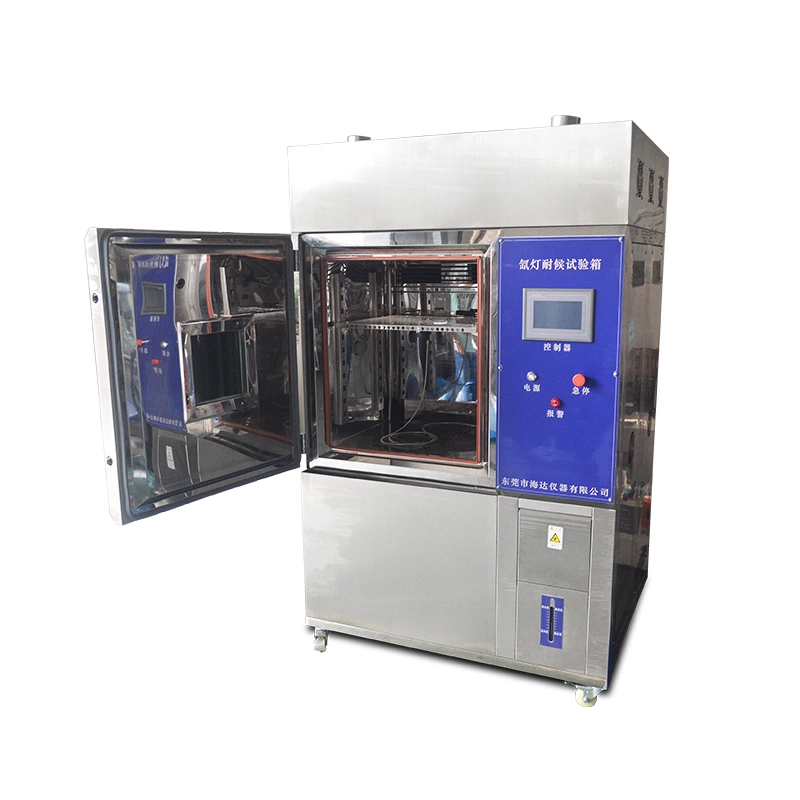

Xenon environment testing machine

The usage:
xenon lamp Xenon environment testing machine box can be used for the choice of new material, the durability test changes in the composition changes after the improvement of existing materials or materials,
this type xenon environment test chamebr can well simulate under different environmental conditions, just like a illumination / rain / condensation / temperature / humidity / wind and any other climatic changes, the resulting changes in the sun exposed material.

This Xenon environment testing machine mainly for the test of non-ferrous / organic / rubber / plastic and building materials.

The certification:

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, SGS, SMC, CMC, CPA, CE,CMA,IMC

Specifications:

Item	Specification
Internal Dimension (WDH)	800800800mm
External Dimension (WDH)	145015002000mm
Inner chamber material	SUS 304 # Stainless Steel, Anti-rust, easy to clean
Outer chamber material	Stainless steel
Chamber Temperature	40±3℃
Temperature Uniformity	≤3℃
Blank panel temperature	65±3℃
Humidity Range	50%-90%
Irradiated intensity	0.35±0.02w/m²at 340nm
Xenon lamp power	6.5KW water-cooled xenon lamp x 1pc
Control system	PLC controller, touch screen
Distance from specimen to arc center	250~300mm, Effective exposure area 6400cm2
Max. Sample dimension	200*90mm Thickness＜20mm
Filter	Daylight filter
Door seal	Silicone rubber seal
Temperature sensor	PT100 high precision temperature sensor
Air circulation system	Stainless steel centrifugal rotor vane to improve the uniformity of temperature and humidity
Cooling ventilator	Automatic controlled by temperature controller, and inner chamber cooled by refrigerating system
Cooling ventilator	France Tecumseh compressor
Power	AC380V, 50Hz, three phase
Safety Protection	Over heat protection for fan, Over load protection for cooling system, Over pressure protection for cooling system, Over temperature protection, Over heat and over flow protection for water pump, Leakage protection, Water shortage protection, Auto stop after failure warning

Main Feature:

1, Ventilation system: Automatic controlled by temperature controller, and inner chamber cooled by refrigerating system

2, Back panel thermometer: adopt wired transmission technology, which highly improve the control accuracy.

3, Temperature sensor: PT100 platinum resistance temperature body.

4, this enviromental test chamber be equipped with intelligent temperature and humidity controller, with PID adjustment and rapid self-turning. It can set several parameters to do cyclic test, directly digital temperature display for easy reading.

5, Multiple protective devices: Over temperature protection, water leakage alarm, over pressure of compressor, electricity leakage protection, alarm and auto power offer protection. In order to protect Xenon light, the light will turn off automatically once open the door.
