Xenon Arc test chamber
Xenon Arc test chamber
The usage
Xenon Arc test chamber mainly for the test of non-ferrous/organic/rubber/plastic and building materials
Type of Xenon Arc test chamber can be used for the selection of new materials, improvement of existing materials or evaluate material composition change after the change of the durability test, this test chamber can be a good simulation under different environmental conditions, materials exposed to changes in the sun.
The certification
ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, SGS, SMC, CMC, CPA, CE,CMA,IMC
Specifications:
Model | HD-E711 |
Inner Box Size (DWH) | 950950900mm |
Outside Dimension (DWH) | 130015001900mm |
Humiture Range | (RT+10)~70C; 30~98%RH |
Humiture uniformity | 2C; 3%RH |
Rainfall time | 1~9999min, adjustable |
Rainfall cycle | 1~240min, interval is adjustable |
Xenon lamp light | xenon long-arc lamp, 6KW10%, 290-800nm, 1000W/m2200 |
Heating/humidifying power | 2.0KW/2.0KW |
Sample spinning machine speed | 1~5r/ min (adjustable) |
Sample and xenon lamp distance | 300~375mm |
Box material | Stainless Steel SUS304# |
Insulation materials | Superfine heat insulation cotton |
Insulation body | Superfine glass fabric |
Circulation system | Single cycle, centrifugal fan |
Control system | Germany KLOCKNER-MOELLER progammable controler |
Gas processing | dischager for fector and harmful gas |
Power | AC380V, three phase five wire, 10KW |
Use environment | 5C~+30C, 85%R.H |
Standard features | 1. Filtering screen viewing window; 2.Moistureproof lamp |
Security Protection | Security device for circuit break, |
high pressure of the compressure, high temperature alarm |

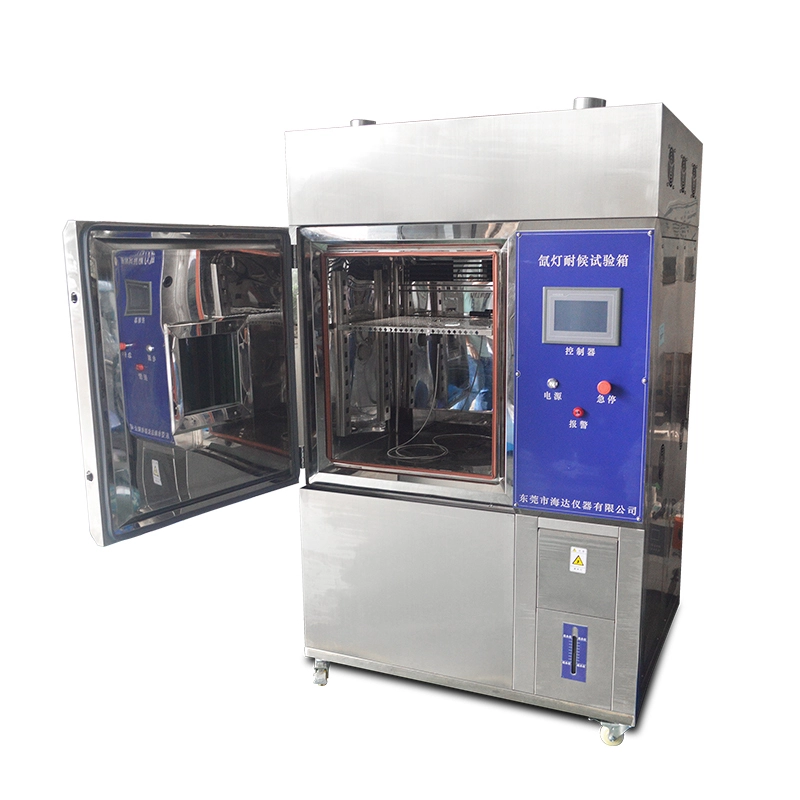

The images of this machine
The introduction of Haida
Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.
