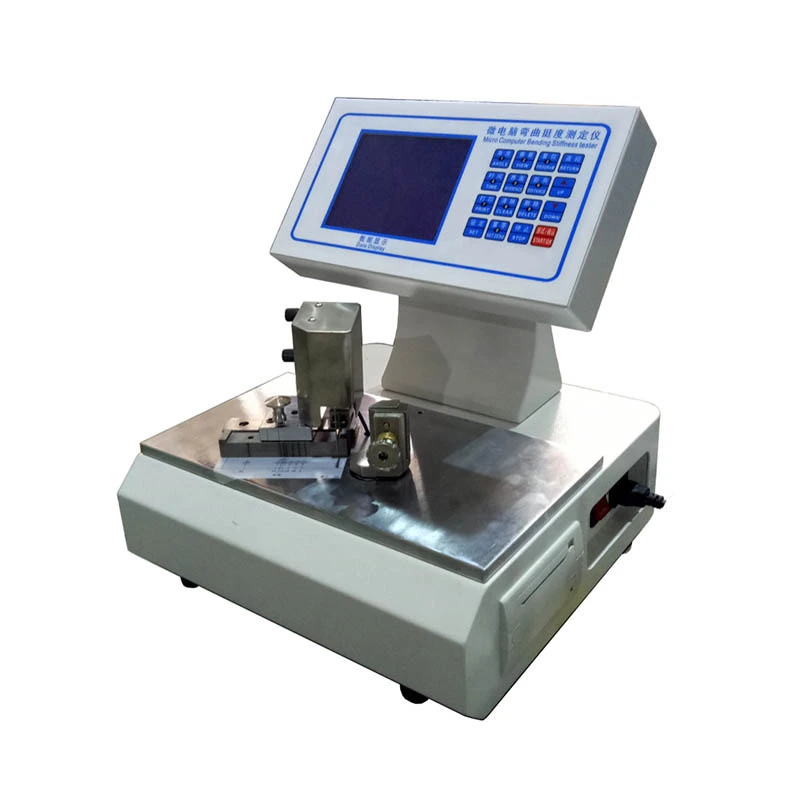

U.S. TMI crease stiffness tester HD-X005

Price:

FOB, CIF

Payment:

L/C, D/P, T/T

Package:

Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Model:

HD-X005

Minimum:

1 SET

Delivery:

15 days after order.

Country:

China

BrandName:

Inquiry

Write a Review

EQUIPMENT DETAILS OF HD-A850 CREASE AND STIFFNESS TESTER

PRODUCT DESCRIPTION

Crease and Stiffness testing is useful to industries of carton board, paper, printing and packaging. The relationship between board stiffness and crease recovery (spring back) is an important factor in the performance of cartons on high speed packaging machines and in manual folding. It is crucial to have the creases in boards correct and uniform. The crease recovery (spring back) can result in forces, which distort the carton or cause stresses to be applied to closures, which reduce their effectiveness.

STANDARD

ISO 5628, ISO 2493

STANDARD SPECIFICATIONS

Testing range	Stiffness focus: (0~500)mN.m
Sample thickness	(0~3)mm
Accuracy	50mN below is ±0.6mN, others is ±1%
Resolution	0.1mN
Stiffness Bending	(±7.5ºor ±15º)±0.3 º
Bending length	(50/25/20/15/10/5) ±0.1mm
Arm of focus	200°±20°/min
Power	Single phase, 220V 50/60Hz
Dimension	340mm330mm340mm
Weight	15kg

Sample cutter

U.S. TMI crease stiffness tester HD-X005 3

Parameter：

Sample size	Stiffness: (7038)mm, creasing:(3836)mm
Sample thickness	(0.1~1.2)mm
Parallelism	≤0.015mm
Dimension	3009090mm
Weight	10kg
