Computer Universal Tensile Testing Machine
Paper Tensile Strength Testing Machine
Product Description
This series of Tensile Tester is widely used in wires & cables, hardware, metal, rubber, footwear, leather, apparel, fabric, tape paper products, pharmacy and so on, for tensile strength, tear resistance, peel strength, bend strength, shear force , ect with different fixtures according to national and international standards customer required.

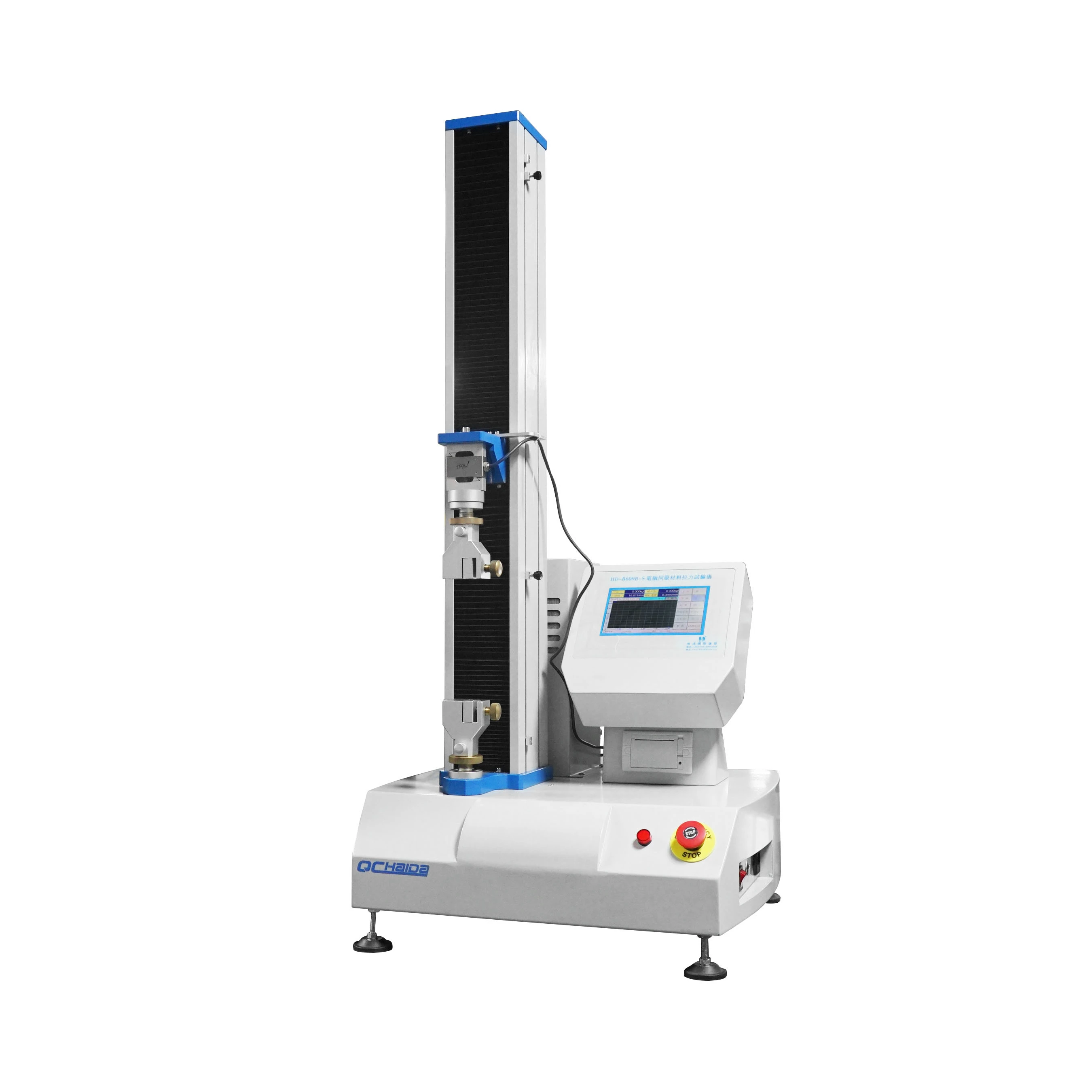

This machine is a kind of electric tensile tester which uses the motor to drive ball screw to move fixture. Place the fixture with sample between the upper and lower fixture, use a given speed to pull sample upward by upper fixture. Load cell above upper fixture will sense tensile strength, and convert the strength into voltage sign and output to the display screen. And the strength value will be displayed automatically.
Main Technical Parameter
Item | Description |
Max. Force | 200 kg (2KN) |
Load cell | Germany brand load cell for high accuracy |
Control system | PC with windows 7 system |
Motor | Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod |
Force reading | kgf, Ibf, N, KN, T etc |
Stoke | 900mm including fixture |
Load cell Resolution | 1/250,000 |
Load Precision | ≤0.5% |
Test speed | 0.1~500mm/min (adjustable by PC) |
Software | TM 2101 |
Curves display | Load- elongation, Elongation-time, Time-elongation, Stress-strain |
Data display | Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… |
Safety features | E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
Product Features

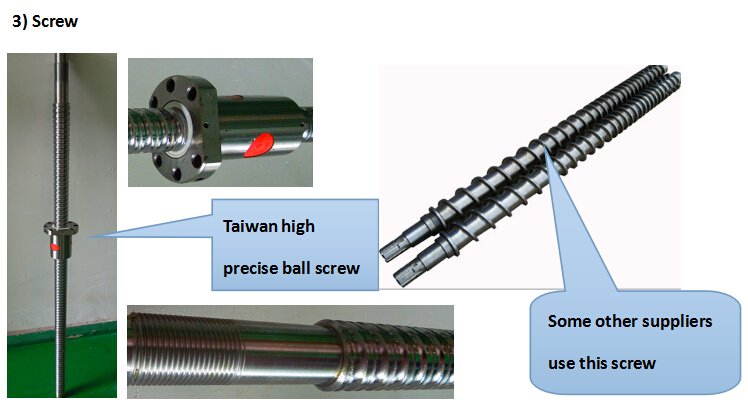

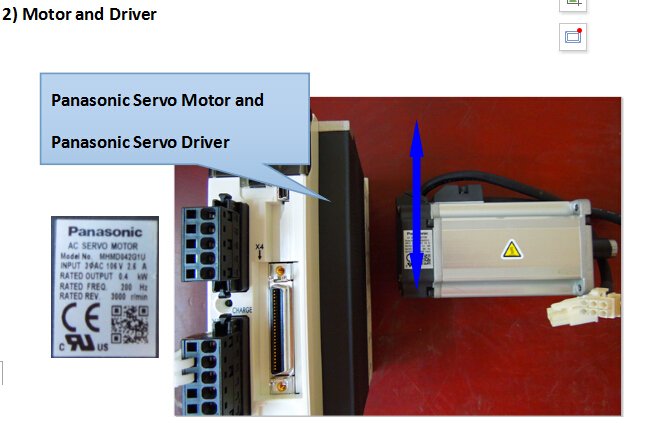

Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan)
Control system: a, computer control with TM2101software;b, Back to origin automatically after the test, c, store data automatically or by manual operation
Data transmission: RS232
Displacement resolution: 0.001mm
Graph scale automatic optimization can make graph to display with best measurement and can implement graphics dynamic switching in the test and has force-elongation, force- time, elongation -time, stress - strain.
It can save results automatically after test finished, and it is manual filing. It can display maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum, minimum and average, etc.
User can set parameters of product materialsuch as length, width, thickness, radius, area and so on.
Many languages random switching: Simplified Chinese, Traditional Chinese, and English.

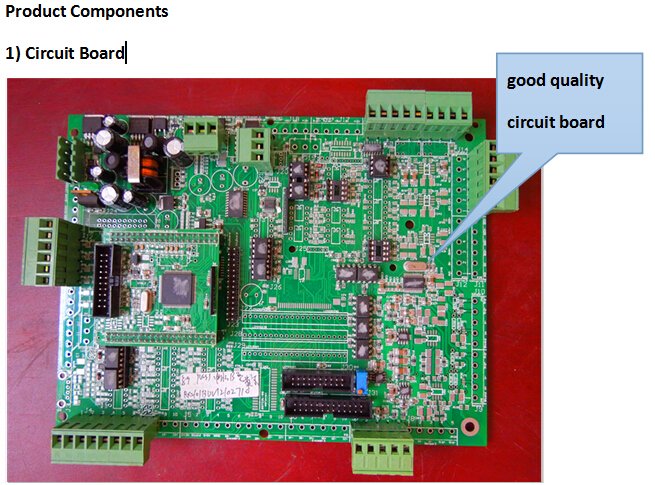

good quality circuit board |
Software and Curves
The TM2101 softwareis designed purposely for computer controlled electronic universal testing machine, used for tension, compress, bend, shear, tearing andpeel test. With the personal computer and interface plate, it could collect, save, process and print test result. Further it can calculate multiple parameters, i.e. maximum force, yield strength, average peel force maximum deformation, yielding point and elastic modulus; this system is featured in curve process, multi-sensor support, image interface, flexible data process and powerful system function.

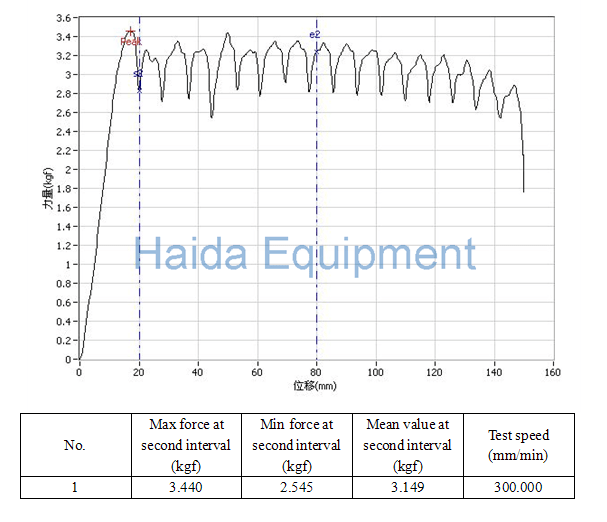

1) Sample curve 1

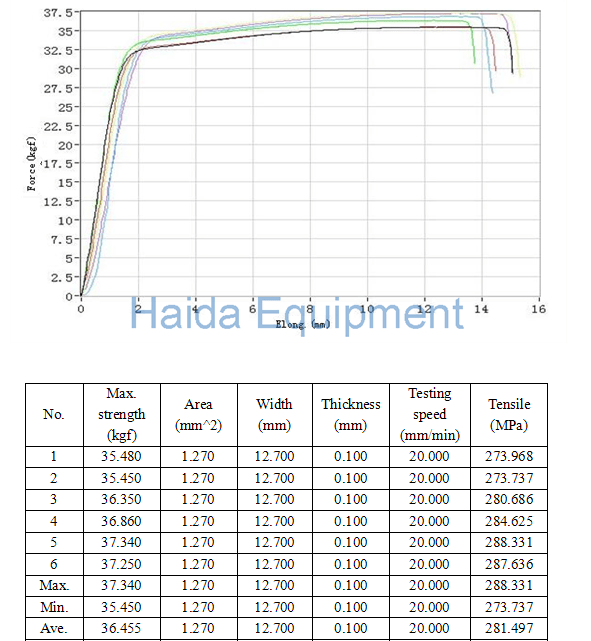

2)Sample curve 2

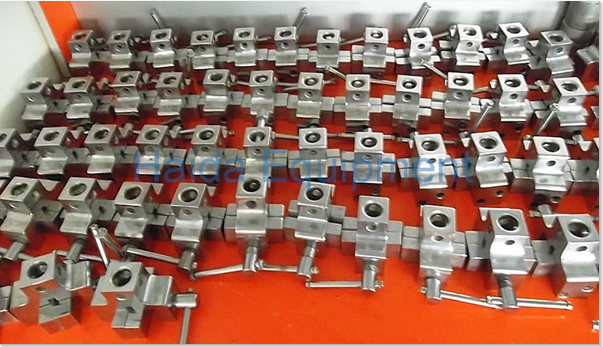

The fixture is very important to the test. This is the fixture list and we also can do it according to customer's requirement. |
1) Fixture list
