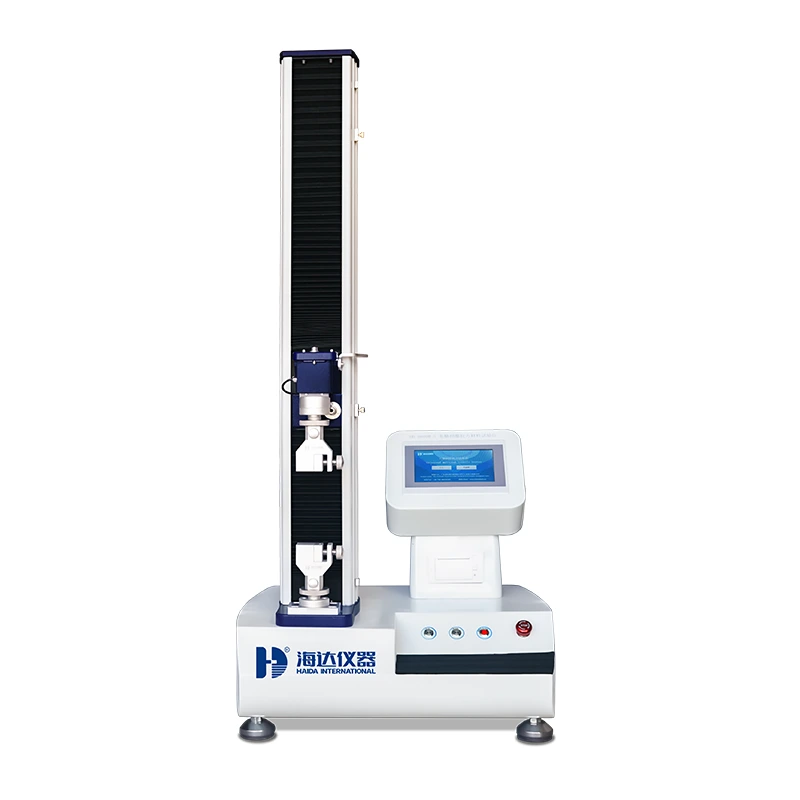

HD-609B-S Tensile Testing Machines

Universal Testing Machine

  Universal Test Machine Video              Universal Test Machine Brochure

1. Application
Universal Testing Machine is used to test tension, compression, shearing force, adhesion, peeling force, tear strength,ect of specimen, semi product and finished product in the field of rubber, plastic, metal, nylon,fabric,paper, aviation, packing, architecture, petrochemistry, electric appliance, automobile,...etc. which are the basic facilities for input quality control (I.Q.C), Quality Control (Q.C.), Physical Inspection, Mechanics Research and Material Development.

2. Theory
Universal Testing Machine:
Place the sample between the upper and lower fixture, use a given speed to pull the upper fixture upward, and the upper load cell with sensor to check tensile strength and convert the strength into voltagsign and output to the display screen. And the strength value will be displayed automatically on the computer.

3.APPLICATIONS

1. Deformation under defined load: Test deformation under defined load of tested sample

2. Load under defined deformation: Test load under defined deformation of tested sample

3. Software can issue report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.

4.  This machine can do different test as per customer requirement such as peel test, tear test, compression test, bend test with different clamps.

4. Standard
ASTMD903, GB/T16491, GB/T1040, GB/T8808, GB13022, GB/T 2790/2791/2792, CNS-
11888, JIS K6854, PSTC-7.

5. Technical Parameters

6. Specification of main engine:
A. Motor system: Panasonic servo motor+Panasonic servo driver+ball screw (Taiwan)+Leeming reduction gears+synchronous belt drive
B. Control system:
a. TM2101 computer servo system;
b. Back to origin automatically after the test;
c. Store data automatically or by manual operation.
C. Data transmission: RS232
D. Computer servo system: Desktop computer servo control tensile tester dedicated system
E. Display modes: Windows Interface display
F. Using windows interface to test software it can achieve to set speed, load, power time,    Breakpoint proportion, much order control mode and meet different test requirement.
G. Whole displacement: Encoder (2500P/R), ascending 4 times precision
H. Displacement resolution: 0.001mm
I. Safety device: Overload emergency stop device, fluctuation travel limit device, leakage   automatic broken electricity system, automatic breakpoint stop function


7. Software:
