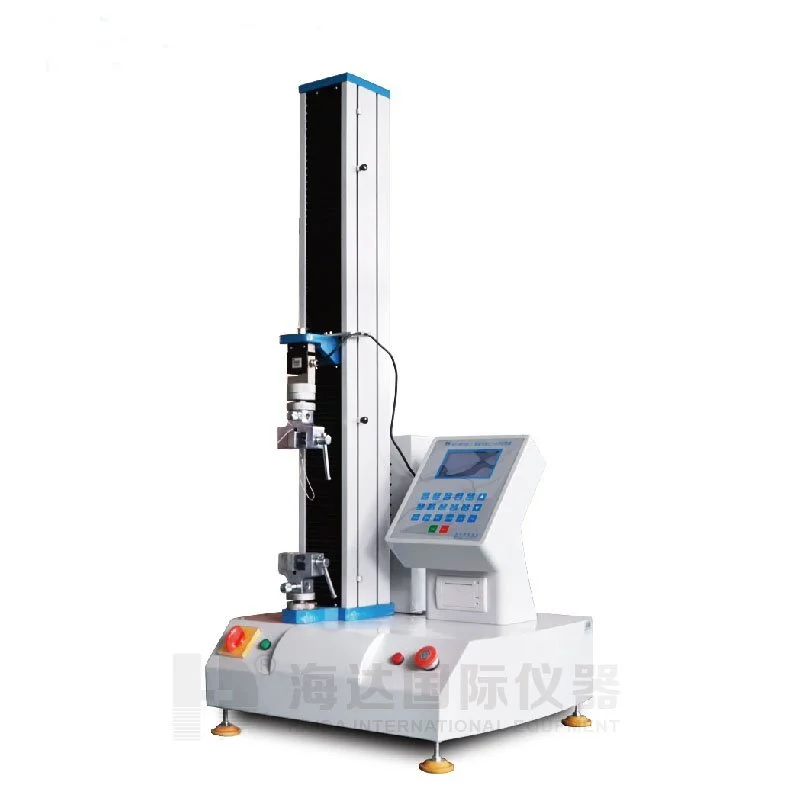

Adhesive tape Tensile Test Equipment

Adhesive tape Tensile Test Equipment

  Universal Test Machine Video              Universal Test Machine Brochure

Product Description

Adhesive tape Tensile Test Equipment is widely used for all packing tape series, double-sided tape series, industrial tape and so on, for tensile strength, tear resistance, peel strength, bend strength, shear force , ect with different fixtures according to national and international standards customer required.Adhesive tape Tensile Test Equipment is to test the tensile strength, compressive strength and elongation, elongation, stripping, tear, bending, bending and compression of all kinds of materials, semi-finished products and finished products

Adhesive tape Tensile Test Equipment working principle:
Testing machine loading force sensor generates electrical signals and sent to the AD converter, while rolling screw drive encoder generates a pulse signal input microcomputer together, the test results will be displayed on the control to adjust the computer screen.

Main Technical Parameter

Product Features

1. Motor system: Panasonic servo motor +Servo driver +High precise ball screw (Taiwan)

2. Control system: a, computer control with TM2101software;b, Back to origin automatically after the test, c, store data automatically or by manual operation

3. Data transmission: RS232

4. Displacement resolution: 0.001mm

5. Graph scale automatic optimization can make graph to display with best measurement and can implement graphics dynamic switching in the test and has force-elongation, force- time, elongation-time, stress - strain.

6. It can save results automatically after test finished, and it is manual filing. It can display maximum force, yield strength, compressive strength, tensile strength, elongation, peel interval maximum, minimum and average, etc.

7. User can set parameters of product material such as length, width, thickness, radius, area and so on.

8. Many languages random switching: Simplified Chinese, Traditional Chinese, and English.

Software and Curves

The Computer Servo Tensile Test Machine's TM2101 software is designed purposely for computer controlled electronic universal testing machine,  used for tension, compress, bend, shear, tearing and peel test. With the personal computer and interface plate, it could collect, save, process and print test result. Further it can calculate multiple parameters, i.e. maximum force, yield strength, average peel force maximum deformation, yielding point and elastic modulus; this system is featured in curve process, multi-sensor support, image interface, flexible data process and powerful system function.


Adhesive tape Tensile Test Equipment Maintenance
1, machine parts, the appearance of regular cleaning to keep clean.
2, plating part please wipe oil to prevent rusting Kibo light.
3, part of the power screw and screw please add oil to protect sensitive transmission. (Add a little butter and oil mining lubricants can be mixed).
4, panel (ie, the control box display) wipe with a dry cloth to prevent wet, to avoid damaging IC electronic components.
5, the fixtures and fittings, please properly set, and remove anti-rust oil to prevent rust.
6, the work required to turn off the power.
