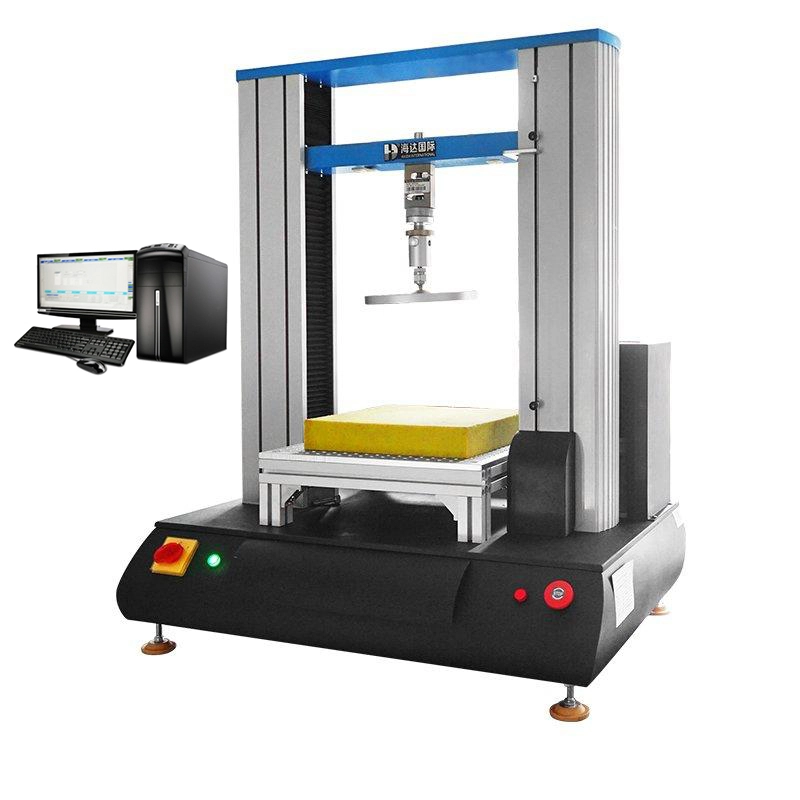

Spongy/Foam indentation/compression hardness testing machine(IFD)
Sponge foam compression testing machine is mainly used for fatiguereciprocating foam polymeric material compression test, determination of residualdeformation rate. Then we can know the dynamic fatigue properties of materials..
Max capacity | 200kg |
Plane plate | Holes diameter 6mm, space 20mm |
Indentor | Having an overall diameter of 250 mm± 1 mm with a 25 mm± 1 mm radius at its lower edge, provided with a device for applying a maximum force of 750 N ± 20 N during one loading cycle. |
Speed | (70 ± 5) times per minute.(adjustable) |
Sample size | Test pieces shall be right parallelepipeds having sides of length 380 mm± 20 mm and a thickness of 50 mm± 2 mm. |
Counter | 6 digits cycle counter for test cycle setting |
Display | LCD touch screen |
Additional function | Adjust the test position during testing to compensate the force automatically |
Dimension | 760×780×1350mm |
Power | AC220V±10%, 50/60Hz, single phase |
Sponge indentation hardness and fatigue tester main parts
PLC Huichuan
Touch screen KunLun on state
Electric Taiwan Auban and Japan Panasonic servo motor
Electrical accessories OMRON
The sensor made in China
Reducer Taiwan brand
