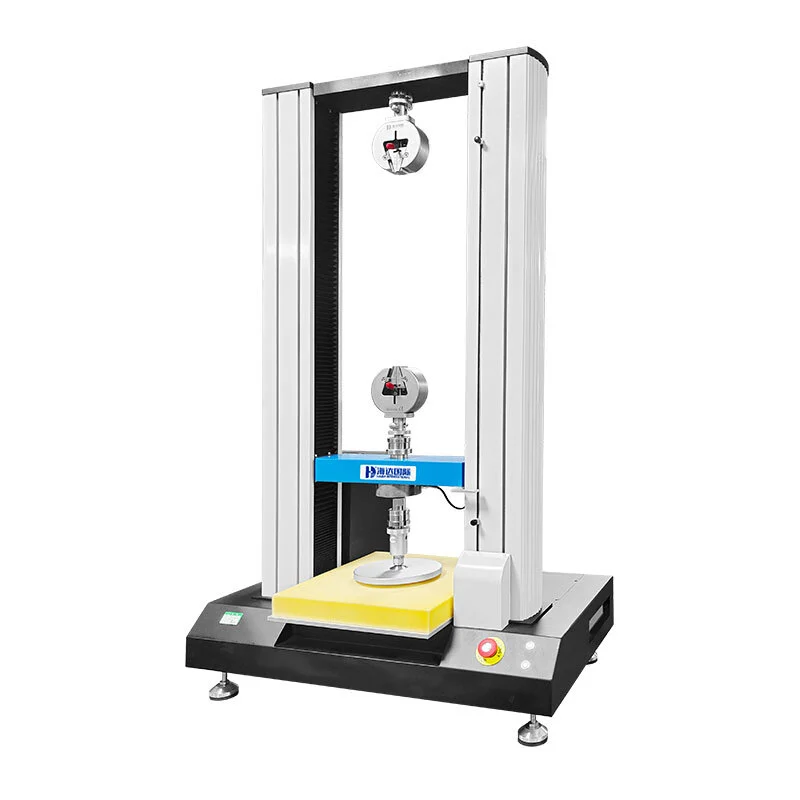

HD-F750A Foam Pounding Dynamic Fatigue Test Machine
Foam Pounding Dynamic Fatigue Test Machine
GENERL SPECIFICATIONS
Packaging Dimensions: (W*D*H) 880*510*1490mm
Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
Gross Weight: 150kg
HS Code: 9024800000
1. Deformation under defined load: Test deformation under defined load of tested sample
2. Load under defined deformation: Test load under defined deformation of tested sample
3. Software can issue report with results for max. force, elongation, tensile strength, peel strength, tear strength, compression strength, etc.
4. This machine can do different test as per customer requirement such as peel test, tear test, compression test, bend test with different clamps.
ASTM D 3574 , ISO 1798 , ISO 2439
Item | Description |
Max. Force | 500KG(5KN) |
Load cell | Exporting brand load cell for high accuracy |
Control system | PC with windows 7 system |
Motor | Panasonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod |
Force reading | kgf, Ibf, N, KN, T etc |
Stoke | 1200mm (Not including fixture) |
Load cell Resolution | 1/250,000 |
Load Precision | within ±0.5% |
Test speed | 0.01~500mm/min (can be adjusted) |
Software | Independent development software of Haida |
Curves display | Load- elongation, Elongation-time, Time-elongation, Stress-strain |
Data display | Max. force, speed, sample information, strength(Kpa, Mpa, N/mm, N/mm2) etc… |
Safety features | E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
Test Method | Tensile Test,IFD Test,CLD Test |
SOFTWARE INTERFACE
Menu
Customer feedback：
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, even it's
not from our factory. What you need to do is to send us the controller.
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
