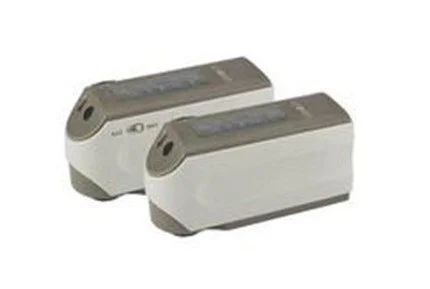

Portable Colorimeter HD-X003-1

Light / Observing System

d / 8 (light scattering, 8 degree viewing angle) with SCI (specular component included) / SCE (not including specular reflection) synchronous measurement function. (Meet CIE No.15, ISO 7724/1, ASTME1164, DIN5033 Tei17, JIS Z8722 Condition c standards.)

Integrating sphere size

Ø52mm

Sensor

silicon photodiode array (dual 40 elements)

Splitting means

Diffraction grating

Wavelength Range

360nm—740nm

Wavelength spacing

10nm

Spectral half band width

10nm

Reflectance range

0-175%, resolution: 0.01%

Light source

2 pulsed xenon lamp

Measuring time

Approximately 1.5 seconds

Minimum measurement interval

3 seconds (at 23 ℃)

Battery performance

At 10-second intervals of about 1000 times (with alkaline batteries) (at 23 ℃)

Measurement / illumination area

Ø8mm/Ø11mm

Repeatability

Spectral reflectance: Standard deviation less than 0.2% (360 to 380nm: standard deviation of 0.4% or less)

Chromaticity value: Standard deviation within ΔE * ab 0.08 (after correction on the board at 10-second intervals white calibration plate is measured 30 times)

Phase difference

ΔE * ab of 0.4 or less (SCI) (based on 12 BCRA Series ll whiteboard, on average, when compared at 23 ℃was measured by the host body values​​)

Language patterns

English / Chinese

Measurement mode

Single / average (Auto mode: 1-8 times / manual mode)

Port

Meet the RS-232C standard

Observer

2/10 degrees

Observation light source

A, C, D50, D65, F2, F6, F7, F8, F10, F11, F12 (using two light sources can be calculated simultaneously)

display

Spectral values ​​/ charts, color values, color values​​, "pass / fail" decision, the relative gloss

Color space / colorimetric data

L*a*b*，L*C*h，Yxy、XYZ、MI、ΔE*ab、CMC（1：1）、CMC（2：1）、CIE94、CIE DE2000、WI(ASTM E313)、YI(ASTM D1925)

Data sets can be stored

1,700 (each data set by a pair of SCI / SCE data members)

Tolerance judgment

Chroma Tolerance

Power supply

AA batteries (X 4), AC adapter

Size

69 (W) X96 (high) X193 (L) mm

Weight

Approximately 670g (including whiteboard / batteries not included)

Operating temperature / humidity range

5 ℃to 40 ℃, relative humidity 80% or less (at 35 ℃), without condensation

Storage temperature / humidity range

0 ℃to 45 ℃, relative humidity 80% or less (at 35 ℃), without condensation

Standard accessories

White Calibration Plate: CM-A145

Ø8mm Target box: CM-A146

RS-232C cable (D-sub9-pin, for IBM, PC / AT): IF-A16

AC Adapter AC-A17

AA (R6) alkaline batteries X 4

Optional accessories

Zero Calibration Box: CM-A32

Hard Carton: CM-A148

Dust Cover Kit: CM-A149

Cover: CM-A152

Color Data Software "SpectraMagic NX": CM-S100W

Printer cable (D-sub9 pin for serial link): CR-A75
