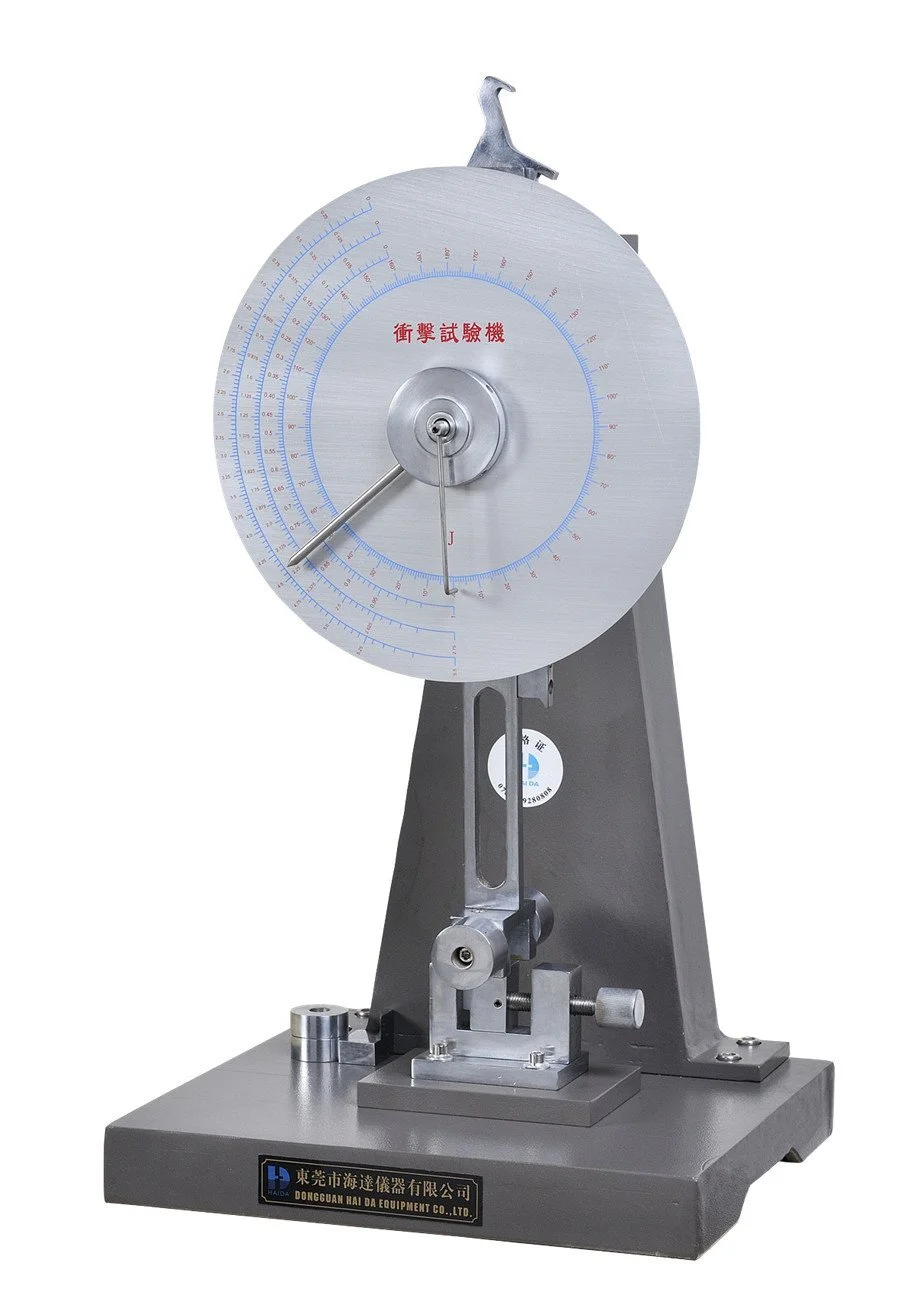

Pendulum  Impact  Testing  Machine

Pendulum impact resistance test machine is used for impact toughness determination of rigid plastics, enhanced nylon, glass fiber reinforced plastics, ceramics, cast stone, insulation material and other nonmetal materials. It is the ideal test equipment of chemical industrial, R&D institution, universities and colleges, quality testing department and professional manufacturer laboratory.

1.Product description:

2.Technical parameters:

Impact speed        3.5m/s

Impact energy        11J,22J

Pendulum angle       150°

Impact center distance   0.335m

Pendulum power distance     Pd 11=5.8949Nm;Pd 22=11.7898Nm

Distance between impact blade and jaw     22mm±0.2mm

Blade filleted radius          R=0.8mm±0.2mm

Energy loss          11J ≤0.05J;22J ≤0.10J

Temperature      15-35°C

Power        1phase, 220V/50Hz/800W

 3.Standard

ISO 180,ASTM-D256,JIS-K7110,JB/T 8761.

4. Maintenance

Pendulum  Impact  Testing  Machine

1. Clean: keep the machine clear and clean it with the cotton fabric before using every time.

2. Rust resistance: spray a layer of rust-resistant oil on the metal part of the machine every week. (and clean it after 2 hours )

3. Lube: fill lube (common one) at the rotating part of the machine (screw) every month regularly.
