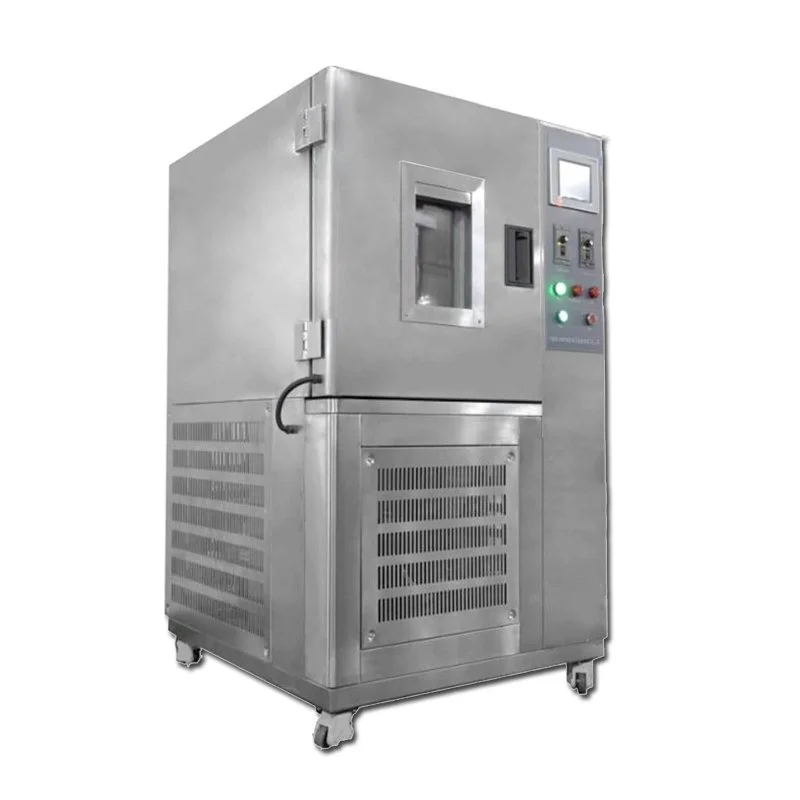

    Ozone Aging Chamber


    Ozone Aging Chamber 5 ozone aging chamber video                       Ozone Aging Chamber 6 ozone aging test chamber pdf


    1.Product introduction

    Ozone Aging Chamber can accurately simulate and control temperature, humidity, ozone concentration of different tools to help you carry out multiple static and dynamic testing

    Ozone Aging Chamber can simulate natural environment of ozone atmosphere for rubber aging, adopt effective anti-aging measures to enhance the life of rubber products.

    Ozone has important effects on the aging of materials. Ozone attacks the carbon-carbon double bond of synthetic rubber and creates cracks on its surface. Rubber parts such as insulated cables, seals and tires are thus destroyed, thereby shortening their service life. Using this ozone test system, you can achieve accelerated aging of any rubber product to determine the resistance level of the material's ozone aging.


    2.Ozone Aging chamber dynamic test:
    Open the turntable button and the extension button, according to the need to adjust the speed, exhaust button is the end of the test when the ozone discharge to open the outdoor

    3.Ozone system
    As a result of IF high voltage power supply, because the electrode does not produce corona overheating, so that the stability of the ozone concentration will not work with time or gas flow caused by the level of ozone concentration decreased. The high-frequency along the surface discharge ceramic corona generator due to the use of high-frequency voltage discharge, the temperature in the discharge area can not effectively shed, leading to decomposition of ozone due to overheating in high air conditions for the use of appropriate

    4.Corresponding standard

    JIS K 6259 , ASTM1149 , ASTM1171,   ISO1431,  DIN53509 , GB/T13642, GB/T 7762-2003

     GB 2951


    5.Applicable industries

    Ozone aging chamber is widely used to control products quality in measuring quality control; Rubber & Plastics; automobile production; wire and cable; packing materials; instruments and meters; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research laboratories; inspection arbitration, and technical supervision departments and other rubber products.


    6.Technical parameter:


    Model

    HD-E801

    Internal dimension (WxDxH)

    500*600*500mm

    External dimension (WxDxH)

    1000*1000*1750mm

    Temperature range

    RT+10~ 60℃ (suggest to use 40℃±2)

    Temperature Fluctuation

    ±1℃

    Humidity range

    30%~90%RH

    Humidity fluctuation

    ±3%RH

    Ozone concentration

    50~1000 pphm, adjustable

    Ozone concentration deviation

    ±10%

    Sample holder

    SUS#304 stainless steel

    Temperature controller

    Programmable touch screen controller

    Ozone concentration analysis

    Concentration analysis meter

    Ozone generator

    High pressure silence discharge type

    Protection system

    Leakage, short circuit, over temperature, over heat

    Test criteria

    ASTM D1149, ISO 1431, JIS K6259...




    7. Ozone Chamber Structure And Features

    1, Internal material adopts high quality mirror stainless steel for ozone resistance.

    2, Insulation material: high-density glass fiber

    3, Use long axial fan motor and high and low temperature resistant aluminum alloy wing type wind turbines to force vertical air circulation.

    4, Chamber door adopts double layer high and low temperature resistant silicone seal ensure the airtight test area.

    5, Chamber bottom has high quality caster for convenient move.

    6, Observation window uses multilayer hollow tempered glass.

    7, Exhaust system: exhaust the high concentration ozone from the test chamber to avoid to poison.

    8, Optional: Built-in 360 degree rotation sample holder, including 3 sets static tensile fixture and 3 sets dynamic tensile fixture.



    8. Ozone Test Control System

    1, With imported micro-computer LCD controller to control the temperature.

    2, PID control

    3, With auto calculation function to reduce the setting inconvenience.

    4, Heater: fin type radiator pipe nickel-chromium alloy u-shaped heater, auto calculate with high accuracy PID + SSR control

    5, Temperature measurement: SUS#304, PT 100



    Standard Configuration

    1, Power line x 1pc

    2, Sample holder x 1set

    3, Fuse x 1set

    4, Operation manual x 1set



    After-service

    If you face any problems in future during Ozone material aging testing chamber  testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation manual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer;
