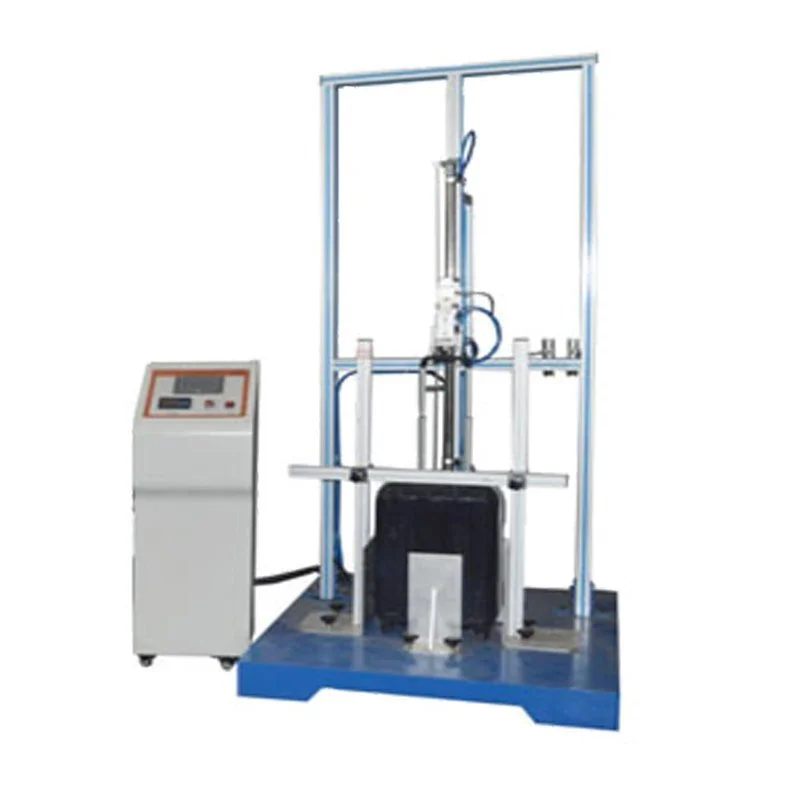

luggage trolley handle reciprocating fatigue testing machine 1

luggage trolley handle reciprocating fatigue testing machine 2

luggage trolley handle reciprocating fatigue testing machine

Price:

FOB, CIF

Payment:

L/C, D/P, T/T

Package:

Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Model:

HD-D115-1

Minimum:

1 SET

Delivery:

15 days after order.

Country:

China

BrandName:

Inquiry

Write a Review

luggage trolley handle reciprocating fatigue testing machine

Introduction
luggage trolley handle reciprocating fatigue testing machine for luggage trolley reciprocating fatigue testing in the test specimen will be stretched, thereby resulting test rod gap, loose, connecting rod failure, deformation.

Theory

luggage trolley handle reciprocating fatigue testing machine -- Under certain pulling and pressing frequency, To check the reciprocating fatigue performance of the pull rod, rod structure of fastness and durability of the switch through the luggage lever lock with a pull rod is continuously pulling switch, reciprocating and pressing.

Usage

Leather suitcase trolley reciprocating fatigue testing machine is used to test fatigue of the reciprocating rod for the luggage. During the test, the rod would be stretched and then test whether there will be backlash, loose, connecting problems and transformation of the rod.

Design Criteria

Design criteria: QB/T 2919-2007.

Specification (table 1)

Item	Specification
Test travel	20～100cm Adjustable
test times	1～999,999 Automatic shutdown
Test power	pneumatic cylinder
Specimen height	100cm
Auxiliary equipment	Bags fixed clamp
Pressure	5～8Kg/cm2
Machine size	(L×W×H)100×100×200cm
Power	1∮,220V/50HZ
Weight	About150kg

luggage trolley handle reciprocating fatigue testing machine 3
Suitcase Pull Rod Reciprocating Tester include 1-6 specified parts:

1、Sample clamp holder: adjust the test size

2、pull rod holder

3、Rod movement device: do reciprocating motion ,and the speed and travel can be adjustable

4、support frame：the height is not less than 1500 mm, Install pulling, pressing travel guide

5、pull rod lock switch gear

6、counter：count the movement times

luggage trolley handle reciprocating fatigue testing machine 4

Introduction

1. power：the machine main power

2. Controller: setting lever operating procedure

3. Strength sensors: show the current value and maximum of the sensor

4. stop: press the key and stop when abnormal situation need to stop the machine in operation

5. Start: start the test and press again the machine will stop
