Xenon testing equipment

Company Services:

All Haida employees adhere to the " Quality comes from precision, quality creates the future " business philosophy, serve each client actively and conscientiously in order to satisfy Haida equipment brand consumers' needs.

The usage

Xenon testing machine is to test the product undergone illumination/rain/condensation/temperature/humidity/wind and any other climatic changes. This aging tester mainly for the test of non-ferrous/organic/rubber/plastic and building materials. It can provide data for user to evaluate the products' properties and performance in order to improve the product qualities.


The certification

ISO 9001:2000; ISO 9001:2008; QS-9000; ISO 14001:2004; CE, SGS, SMC, CMC, CPA, CE,CMA,IMC

Specifications:

Studio Size: 950 * 950 * 800mm

Dimensions: 1300 × 1500 × 1900mm

Temperature range: RT +10 ℃~ 70 ℃

Humidity range: 90 ~ 98% RH

Temperature uniformity: ±2 ℃

Temperature fluctuation: ±0.5 ℃

Temperature control: PID self-tuning temperature control mode

Light center distance: 70mm

Samples with light center distance: 50mm

Standard Specimen size: 75 × 150 mm or 75 × 300 mm

Sink Depth Requirements: 25mm, automatic control

Effective radiation area: 900 × 210 mm

UV wavelength: UV-A wavelength range of 315-400nm; UV-B wavelength range of 280-315nm

Test time: 0 ~ 999H, adjustable, UV Gel time alternately adjustable

Blackboard Temperature: 40 ℃~ 65 ℃

Power supply: 3 ∮, AC380V/50HZ, 5KW

Weight (approximately): about 110kg

Standard Size: (inner carton) 600 * 600 * 600mm 500 * 600 * 600mm 700 * 700 * 70mm 800 * 800 * 800mm

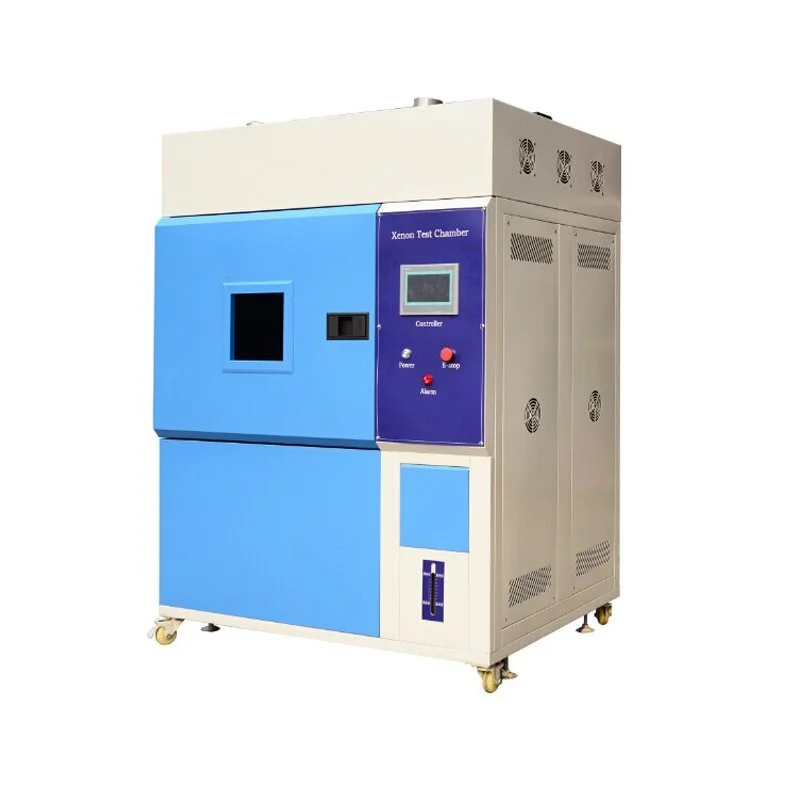

The images of this machine

The introduction of Haida

Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB,SO, TAPPI, EN, DIN, BS and other domestic and international standards.
