LCD Carboard Ring Crush Tester
Ring Crush Test Machine Video
Ring Crush Test Machine Brochure
Specifications
Carboard Ring Crush Tester
1.Multi-fuction testing of paperboard,pasteboard
2.Can do RCT, FCT, ECT, PAT, CMT
3.Flat crush
The usage
carboard ring crush tester is a high accuracy and intelligent instrument, designed according to relevant standards. The advanced components, mating parts and micro-computer are logical structured, to ensure the property and appearance.

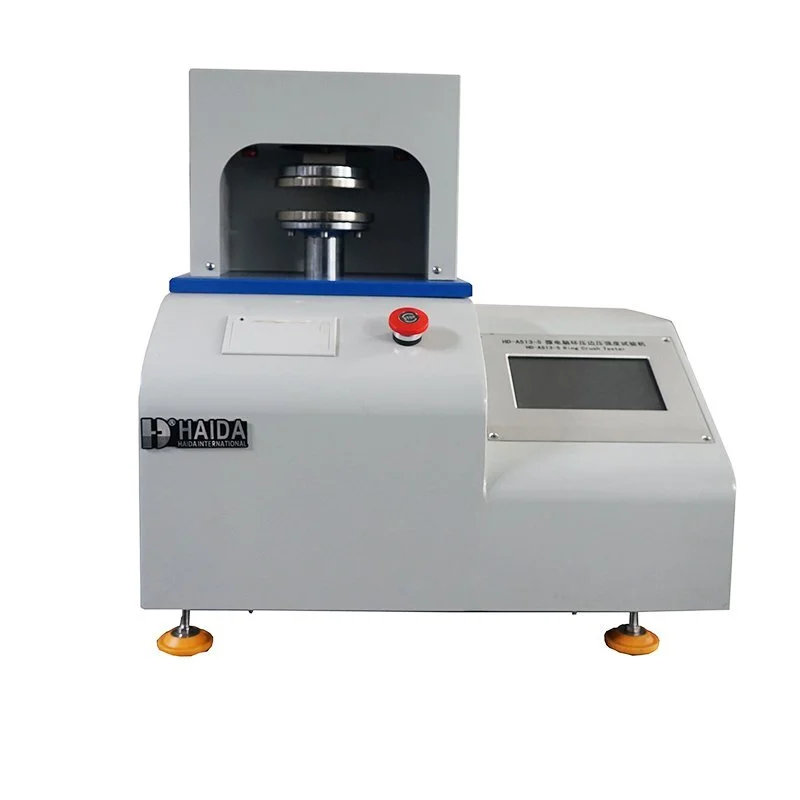

The picture of the machine:
The main technical parameters are as follows
Carboard Ring Crush Tester
Capacity (Optional) | 10, 20, 50, 100, 200 kg |
Resolution | 1/100,000 |
Precision | < 0.5% |
Display Mode | LCD |
Platen | 100×100 mm or depending on the diameter of the flat crush sample |
Compressed Space | 80 mm |
Pplaten Parallelism | ± 0.05 mm |
Ring Crush Sample | 152×12.7 mm |
Edge Crush Sample | 25×100 mm |
Test Speed | 12.7 mm/min |
Dimension (L×W×H) | 570×415×730 mm |
Weight | Approx. 48 kg |
Power | AC220V, 1.5A |
