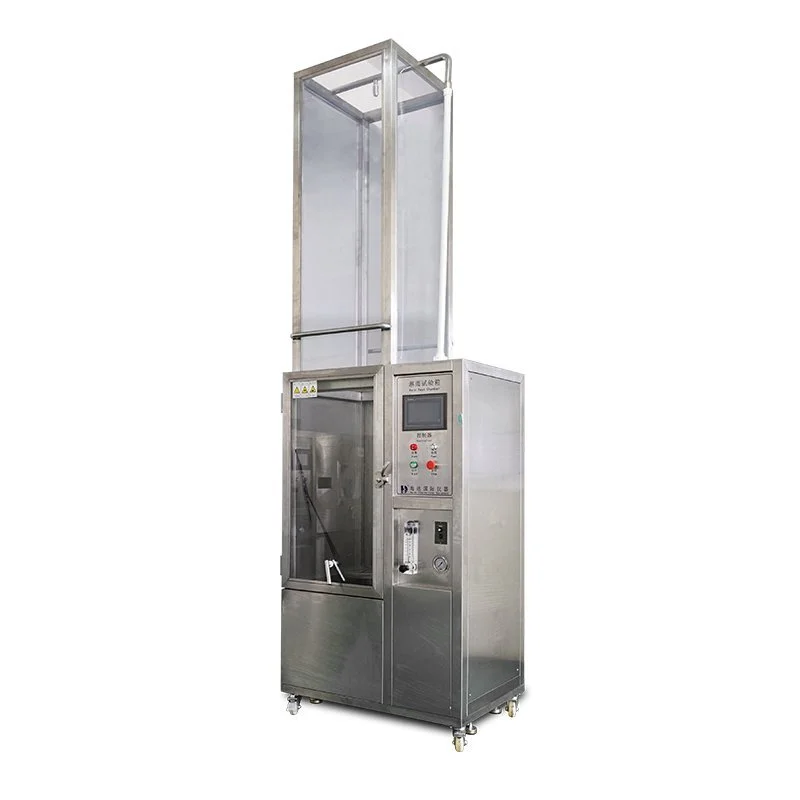

IPX56 waterproof climate chamber
IPX56 waterproof climate chamber IPX 56 water testing PDF
IPX56 water testing video
Generl Specifications
Packaging Dimensions: (W*D*H) 1600*1400*2000mm x 2
Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
Gross Weight: 560kg
Usage:
IPX67 waterproof climate chamber is mainly suitable for outdoor lighting, outdoor lamps and lanterns, household appliances, communication products, the signal device and the automobile lamps and lanterns and other products to do test protection grade (IP waterproof level test).
Standard
EN60598、IEC60529-2001、GB4208-2008（IPX5、IPX6）
Applications& Features
1. To be used in testing external lighting and signal device and vehicle lamps shell protection.
2. Cyclic test includes conditions: heating, watering
3. The internal chamber has lighting device
4. Rain time, rain interval time and rainfall strength can be adjusted and controlled separately.
Standard Features
Item | Specification | |
Internal chamber size(W*D*H) | 1000*1000*1000mm(can be customized) | |
External chamber size(W*D*H) | 1400*1200*3500mm | |
IP Code | IPX5 | IPX6 |
Internal diameter of the nozzle | 6.3mm | 12.5mm |
Delivery rate | 12.5l/min±5% | 100l/min±5% |
Core of the substantial stream | Circle of approximately 40mm diameter at 2.5m distance from nozzle | Circle of approximately 120mm diameter at 2.5m distance from nozzle |
Chamber material | Internal: SUS304 stainless steel, external: stainless steel | |
Test duration per square meter of enclosure surface area likely to be sprayed | 1 min | |
Minimum test duration | 3 min | |
Controller | PLC touch screen | |
Distance from nozzle to enclosure surface | Between 2.5m and 3m | |
Sample rotatory table | Diameter 500mm, rotation speed adjustable | |
Power | AC380V, 50Hz, three phase | |
