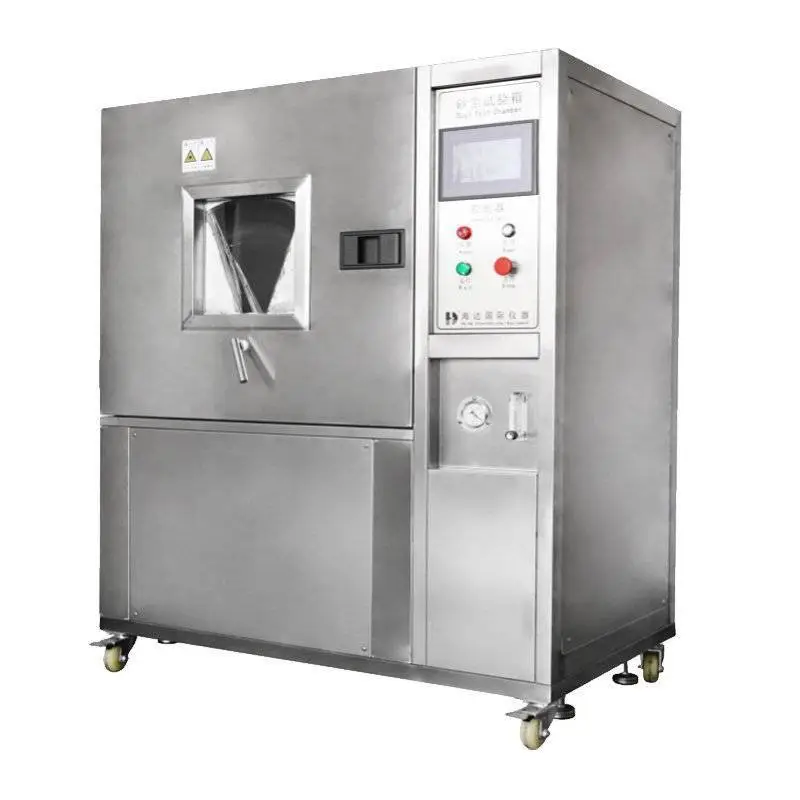

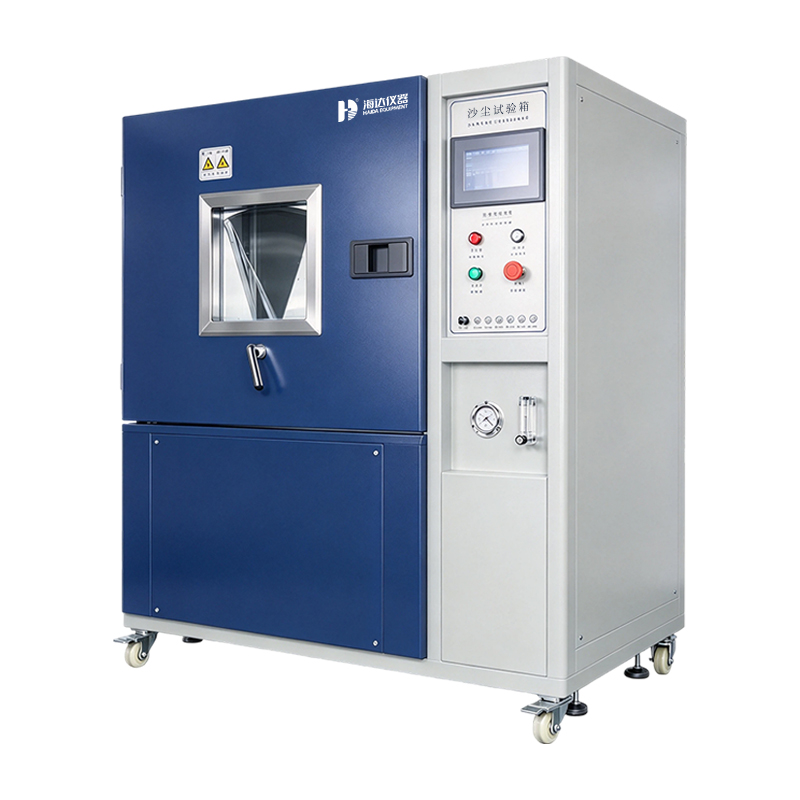

Dust Test Chamber - IP5X/6X
Dust Test Chamber - IP5X/6X
The dust test chamber can accurately simulate the dust conditions in the natural environment, and the simulated dust environment conforms to the IPX5/IPX6 test requirements. The sand-dust test chamber is mainly used by laboratories or manufacturers to detect the protective ability of the product casing against dust and to determine the level of dust protection.
Automotive, vehicle parts
Electronic-cabinet product
LED & lighting product
Mobile, communication devices
Outdoor facilities…
IEC 60529, Clause 13.4, IP5X/6X (with optional underpressure mode)
SAE J575, Clause 4.5, Dust Exposure Test
DIN 40050, IP Codes 5K and 6K
IEC 60068-2-68, LA2, vertical dust flow
Item | Specification |
Internal dimension | 800W*800D*800Hmm |
External dimension | 1300W*1000D*1700Hmm |
Test sample | Size W20cm- L30cm-D15cm, weight 0.5kg |
Chamber material | SUS304 Stainless steel |
Specifications of square mesh sieve | Mesh hole 75um, mesh metal wire diameter 50um |
Talcum powder amount | 2kg/ m³ |
Airflow speed | No more than 2m/s |
Door | Left open door with tempered glass door |
Controller | PLC Touch Screen controller, programmable to set as below cycle: a. Blowing dust time (Stop/Blow) m/s b. Cycle time: can be adjusted c. Pre-set test time: 0s ~99m99s |
Vacuum system | Pressure gauge, air filter, Pressure regulating FRL, connecting pipe, Vacuum pump |
Vacuum pump capacity | 60-600 L/H |
Fan | Centrifugal fan |
Safety protection devices | Meter over-temperature function, Phase shortage protection, Power short-circuit protection |
Chamber Design Features
1, Chamber material: SUS #304 stainless steel;
2, Transparent window is convenient to observe specimen during testing;
3, Blow fan adopts stainless steel shell, high sealing and wing speed, low noise;
4, Inside the shell is the funnel type, vibration cycle can be adjusted, dust free float in the sky falling to blowing the hole together.
Chamber Details:
