Introduction

Usage :

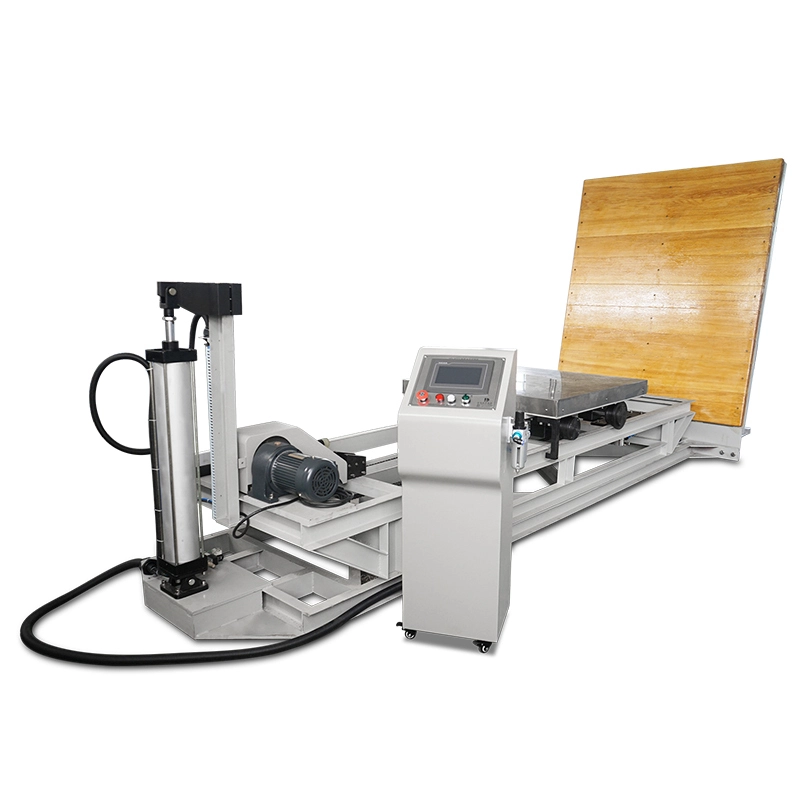

Incline impact tester is simulated the impact strength of packaging in the real circumstance of transport . Slope impact test machine is apply to the pile up of goods , slide of electromechanical , loading of the engine , transportation of product . This product is also can supply as the test machine to scientific research institution , college , packaging technique test centre , packaging material manufacture and foreign trade or transport department .

Functions :

1 . Flexible location motor-driven pulley . It is easy to fix and achieve the velocity change .

2 . The height of slope is relatively low so that is benefit of fix the specimen ; strong impact resistance board , guarantee the fastness of the structure .

3 . The pulley can be adjusted to horizontal in order to fix the specimen for customer . The angular adjustment can be driven by cylinder which is flexible and convenience .

4 . In order to keep the test staff completely safe the tester support remote control operating .

5 . The customer only need to fix the machine on the ground when stalling , no other complicated operation convenient for test .

Design standard

Test standard : ISTA-1E

Explanation :

1 . Power : The battery main switch

2 . Stop : Stop test

3 . Start : Press this button to start the test ( it will be automatic stop when get the test times )

4 . up & down : Press UP or DOWN to adjust the rolling carriage up and down , the max . angle of rolling carriage with base is 15°

5 . Counter : Setting the test times

6 . Speed display : To display the velocity during test ( m/s ) , and will automatic reset for another test

7 . Time display : To display time during test ( s )

8 . Speeder : set the different frequency to change the impact velocity .

Specifications

Specification for type 16

Covers an area of ( length x width of 5500 x 1630 mm

Sliding length 1800 mm

The striking plate height of 1630 x 2400 mm

Block ( 1600 X1000 mm wide and X long )

Remark : customer should equip the air-compressor by themselves

Usage of counter

: press this button to choose the each digit and adjust the value

▲ :press this button to set the value of each digit ( 0~9 )

RESET : reset the value

MODE : test mode ( can be remain same )

Equipment installation

1 . Power : AC 380V±10% , 50/60HZ make sure power wire connection is normal and make instrument connect ground well .

2 , environmental requirements : room temperature 0~55℃ and relative humidity < 80%RH ;

3 , the instrument shall be placed on the stable and solid and level stage .

Operation instruction

Test step :

1 . Connect the inlet air tube and air compressor and open air compressor

2 . Power on and turn on power switch the light will be bright

3 . Put the packaged product located in a central position and then put the pallet which has packaged products close to impact surface ( as picture A ) ; if the size of product package is same as pallet , the product should be vertical close to impact surface ( as picture B )

                 (picture A)                                                 (picture B)

4 . Press up to make the rolling carriage rise to squareto condition with impact surface or rise a certain angle in accord with customer’s requirement .

5 . Let the rolling carriage which has packaged product try the test and to determine whether need adjust the acceleration or not , and then adjust the slide distance , when reach the request velocity , now it will display the test velocity & test time on velocity display and time display

6 . Setting the test times cycle in counter

7 . Press start to start the test , and also will display the test velocity & test time on velocity display and time display

8 . The tester will automatic stop when finish the setting times

9 . Press down button to make rolling carriage drop to the parallel position with base ; and then take down the samples to check the condition after impact test

10 . Make the test in accord with the step 2~8 and record the all test result

11 . Turn off air compressor and power switch after finishing test

Maintenance

1. Clean : Keep instrument clean at any time .

2. Antirust : Spray antirust oil on the instrument one time regularly .

3. Engine oil : Refuel lubricant oil on the moving parts of the instrument regularly ( choose regular engine oil is ok ) .

Quality guarantee

A ) Quality assurance items

The guarantee period with FOC within one year ( not including nonexpendable & transport and travel fees )

1. During the guarantee period , Haida shall supply free maintenance or replacement for the damaged part ( just for nonexpendable part ) induced by non-human damage ;

2. If any quality problems occurs within the guarantee period , and Haida must provide on-site service , the transport and travel expense shall be borne by customer ;

3. If any big quality problems occurs out of the guarantee period , Haida will provide a maintain service , the transport and travel expense shall be borne by customer , also charge for a favorable price ;

4. Haida will provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation , equipment maintenance ;

B ) The main quality warranty maintenance certificate

If there is any dispute please refer to our guarantee letter , so :

① please keep the guarantee letter , if you lost it , please connect with us in a month .

② If the guarantee letter has been altered or it has no our stamp , it is useless .

C ) The following conditions need to be paid reasonably even in the assurance period :

① Natural reasons

② Operating mistakes

③ Voltage is not fit for our operation instruction

④ Repack it without our guides

⑤ Damaged for borrowing to others

⑥ Damaged for authorized machine modification

⑦ Damaged for authorized calibration

⑧ Authorized transshipment mistake

⑨ Serve for long distance area

D ) Attentions

① Any service outside Guangdong , China , transport and travel fees shall be paid by customer .

② The apparatus try not to be used in the following situations :

a . Vibration , rocking the occasion .

b . Direct sunlight .

c . Hot , dusty , damp places .

d . To ensure safe , AC supply of the machine should be well grounded .

e . Do not use strong solvents ( such as : benzene , nitro oil ) washing machine .

f . Do not inject water and debris into the machine ; prevent damage to electrical components and electrical shock .

g . Instrument displays the disassembly and debugging can only be measured by the State Department approved the units and the company , other people not allowed to overhaul .
