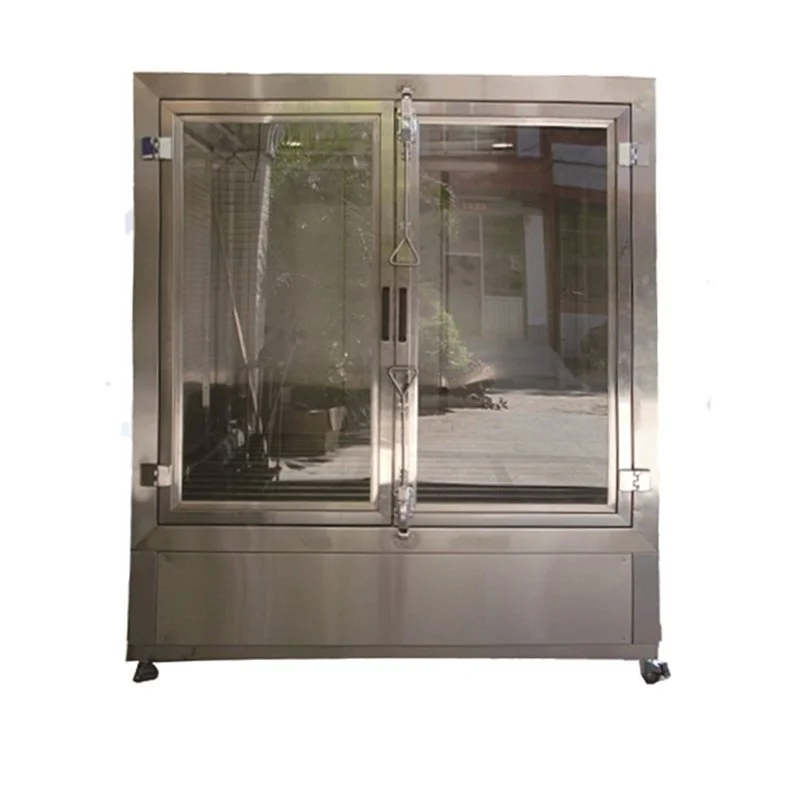

GB10485-89 Rain spray testing chamber

Application:

GB10485-89 Rain spray testing chamber is suitable for testing the adaptability and reliability of electrical and electronic products, materials, spare parts, etc, in the condition of rain and temperature. Can also be used to external lighting and signal device and vehicle lamps shell protection.

The main technical parameters:

Spray ring radius: 375 and 500mm

Water pipe diameter: φ16mm

Spray orifice diameter：φ0.4mm

Aperture spacing：500mm

Swing pipe : ±45°、±60°、±90°、±180°（theory number）

Test stands rotate speed : 1r/min(can be no quarter speed adjustment)

        Controller:Import FM type inverter

Times controller:Import programmable computer integrated time controller (Jin Zhong Mo le)

Water pressure control: flow gauge

Observation plane:Large area of toughened glass door visualization

Water supply system, booster pump, water storage

Safety protection leakage, Short circuit, Motor overheating

Power supply：110V, 60HZ

Chamber structure:

The outside layer is composed of the high quality stainless steel plate, the inner container is the composed of stainless steel tabula rasa.

Large area of visible glass door, easy to observe the test specimens in the testing chamber

The button is made of high quality of tank, can be fixed PU activities wheel, GB10485-89 Rain spray testing chamber is convenient for user moved.

With 270 degree swing pipe & 360 degrees whorl pole water jet device.

Adjustable speed samples stage.

Feature:

1. Studio equipped with lighting equipment

2.  Rain time, interval time, rainfall intensity, regulate and control apart.

Control system:

(Germany) admiralty. Per stig moller programmable controller to complete the contrl of the whole system of time and sequence.Adopt imported frequency converter speed effectively guarantee the test according to the standard operation.Equipped with water filter.

Meet standard:

GB10485-89
