ASTM Universal Tensile Tester

1.Application
Electronic Universal Tensile Tester is used to test tension, compression, shearing force, adhesion, peeling force, tear strength,etc. of specimen, semi-product and finished product in the field of rubber, plastic, metal, nylon, fabric, paper, aviation, packing, architecture, petrochemistry, electric appliance, automobile,...etc. , which are the basic facilities for input quality control (I.Q.C), Quality Control (Q.C.), Physical Inspection, Mechanics Research and Material Development.

Main components:
Framework, loading systems,force measurement systems, data processing systems, fixtures and accessories, the most important are: loadforce measurement and data processing

2.Theory

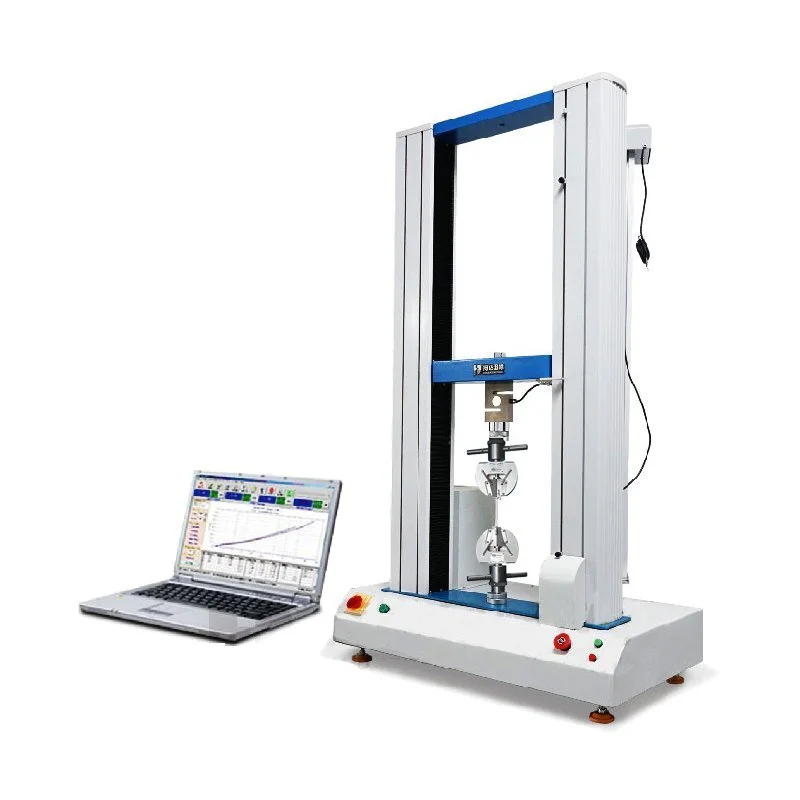

Computerized High Accuracy PVC Strength Tensile Testing Machine HD-604B-S
Place the sample between the upper and lower fixture, use a given speed to pull the upper fixture upward, and the upper load cell with sensor to check  tensile strength and convert the strength into voltage sign and output to the display screen.And the strength value will be displayed automatically on the computer.

3. Features
1. Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
2. Using a single-screen operation; do not need to switch the screen;
3. With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily
4. The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
5. Choosing translational, comparative mode at the same time to make a number of curve data comparison;
6. With a variety of measurement units, Measure In Imperial & Metric are switchable;
7. With self-return & auto-correction function;
8. With automatic magnification function, in order to achieve the most appropriate size of the graphics;
9. With the user-defined Test methods; with experimental data analysis function;
10. High quality, accurate and reliable models with reasonable price.

4.Standard
Computerized High Accuracy PVC Strength Tensile Testing Machine
ASTMD903,GB/T16491,GB/T1040,GB/T8808,GB13022,GB/T 2790/2791/2792,CNS-11888,JIS K6854, PSTC-7.

5.Technical parameters:

Universal Tensile Tester Maintenance
1, machine parts, the appearance of regular cleaning to keep clean.
2, plating part please wipe oil to prevent rusting Kibo light.
3, part of the power screw and screw please add oil to protect sensitive transmission. (Add a little butter and oil mining lubricants can be mixed).
4, panel (ie, the control box display) wipe with a dry cloth to prevent wet, to avoid damaging IC electronic components.
5, the fixtures and fittings, please properly set, and remove anti-rust oil to prevent rust.
6, the work required to turn off the power.


view:

Software

The TM2101 measurement and control system is designed purposely for microcomputer controlled electronic universal testing machine, microcomputer controlled universal hydraulic testing machine and microcomputer controlled compress testing machine, used for  tension, compress, bend, shear, tearing and peel test. With the personal computer and interface plate, it could collect, save, process and print test result. Further it can calculate multiple parameters, i.e. maximum force, yield strength, average peel force, maximum deformation, yielding point and elastic modulus; this system is featured in curve process, multi-sensor support, image interface, flexible data process and powerful system function.
