Accelerated Weather UV test machine

1. Product description

Accelerated Weather UV test machine as the light source, through the simulation of natural sunlight in the ultraviolet radiation and condensation, the material accelerated weathering test, in order to obtain the results of material weathering. UV, simulation of natural climate in the rain, high temperature, high humidity, condensation, dark condition

2. Technical parameters:

Accelerated Weather UV test machine

Studio Size	400W×1140D×390Hmm
Outside dimension	500W×1300D×1360Hmm
Materials	Inside and Outside SUS#304 stainless steel
Temperature range	RT+10~70°C
Temperature uniformity	±2°C
Temperature fluctuation	±0.5°C
Temperature control	PID SSR control
Humidity range:	≥90%RH
Controller	Korean TEMI 880 programmable controller
Control mode	Balance temperature humidity control (BTHC)
Test cycle setting	Illumination, condensation and water spray test cycle is programmable
Lamp power	40W/Piece
Distance from sample to lamp	50±2mm (adjustable)
Centre distance between the lamp	70mm
Irradiance	1.0W/cm2
Wavelength ultraviolet light	UV-A: 315-400nm; UV-B: 280-315nm (8pcs, 1600h lifetime)
Effective irradiation areas	640×1140mm
Irradiation black panel temperature	50°C~70°C
Standard Specimen Size	75×150mm or 75×3000mm (special specitications to be described in the contact)
Required water depth for water channel	25mm, automatically control
Testing time	0~999H, adjustable
Power	220V/50Hz /±10% 5KW
Protection system	Overload short circuit protection, over temperature protection, water lackin

Control System:

Adopts black aluminum plate to connect temperature sensor and adopts black board temperature meter to control heating so as to ensure more stable temperature.
The radiometer probe is fixed so as to avoid the frequent installation and disassembly.
The radiation quantity adopts the special UV irradiatometer with high-precision display and measurement.
The radiation intensity is not more than 50W/m2.
The illumination and condensation can be controlled independently or alternating and circularly.

Box structure
Box with CNC machine tool processing molding, nice shape, two-way clamshell lid, easy to operate.
Box liner imported high-grade stainless steel plate, box outside the gallbladder with A3 steel spray, an increase of the appearance of texture and cleanliness.
Heating tank liner type heating, heating up fast, uniform temperature distribution.
Drainage system uses the eddy-type and U-type sedimentation device drainage, user-friendly cleaning

Design criteria:

Accelerated Weather UV test machine

(1) ASTM D4587: Standard Practice for Fluorescent UV-Condensation Exposures of Paint and Related Coatings

(2) ASTM D4799: Standard Practice for Accelerated Weathering Test Conditions and Procedures for Bituminous Materials (Fluorescent UV, Water Spray, and Condensation Method)

(3) ISO 4892-1: Plastics – Methods of Exposure to Laboratory Light Sources – Part 1: General guidance

(4) ISO 4892-3: Plastics - Methods of Exposure to Laboratory Light Sources - Part 3: Fluorescent UV Lamps

(5) ASTM D4329: Standard Practice for Fluorescent UV Exposure of Plastics

(6) AATCC TM186: Weather Resistance: UV Light and Moisture Exposure

(7) ASTM D5208: Standard Practice for Fluorescent Ultraviolet (UV) Exposure of Photodegradable Plastics

(8) IEC 61345: UV Test for Photovaltalic (PV) Modules

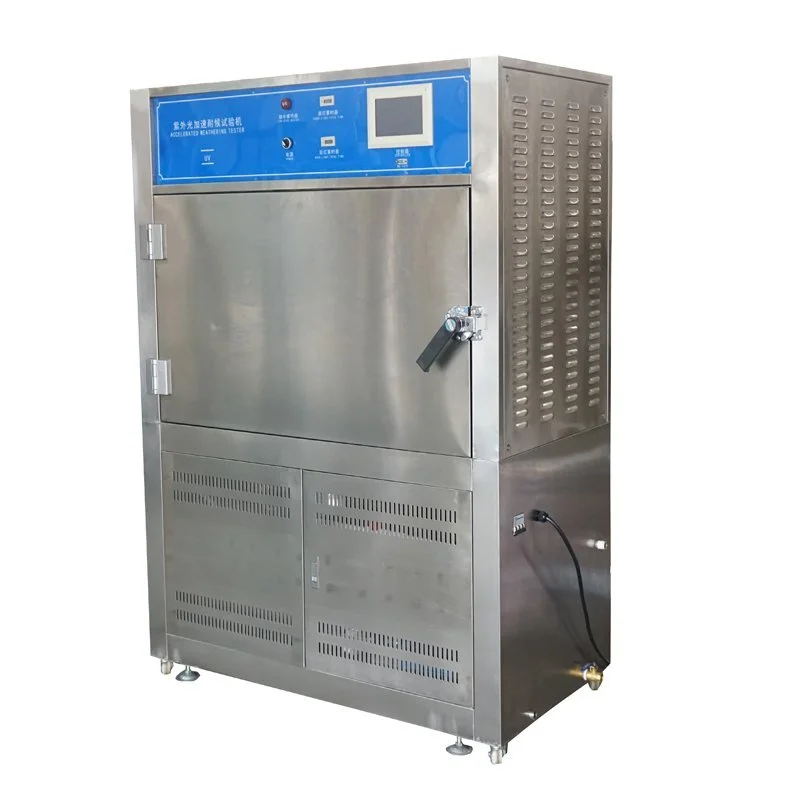

Poduct image:

Product structure:

Accelerated Weather UV test machine 6

Accelerated Weather UV test machine 7

Accelerated Weather UV test machine 8
