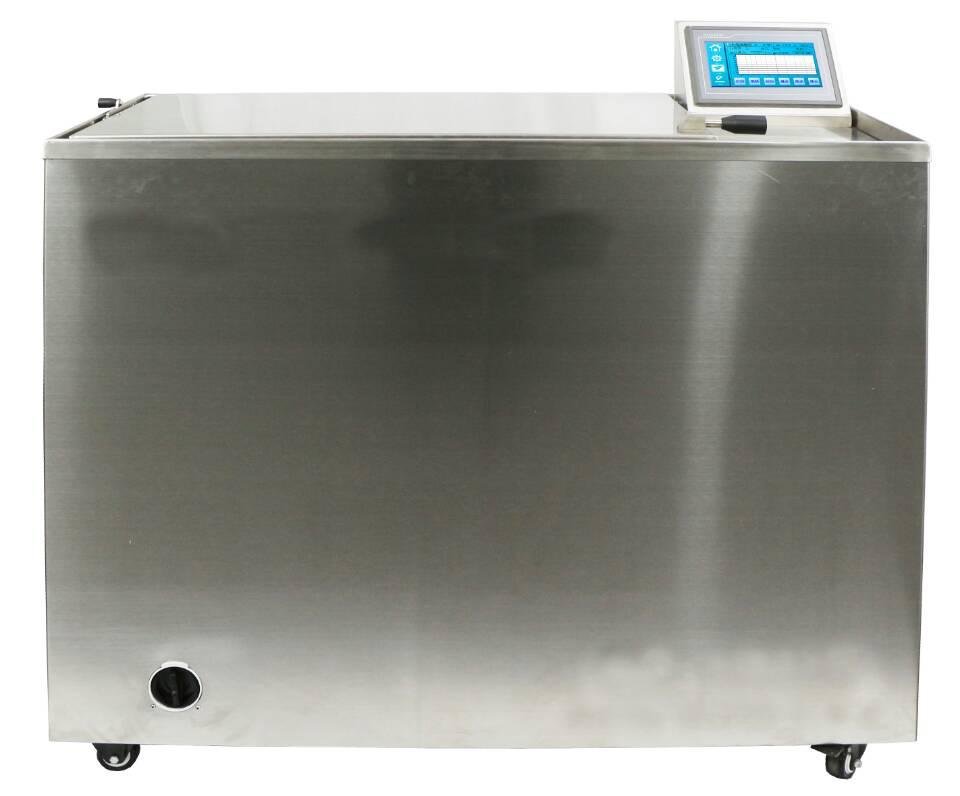

Textile Colour Fastness To Washing Tester
Application
Textile Colour Fastness To Washing Tester ,also as a kind of textile testing equipment,is applied to determine the textile dye washing color fastness, resistant to washing, resistant to dry cleaning and resistant to shrink of textile cotton, wool, silk jute and chemical fiber textiles.
Testing standard:
ISO 105-C06,ISO 105-C08,ISO 105-C09,ISO 105-C10,ISO 105-D01,ISO 105-E03
AATCC 61,190 AATCC 86,132
M&S C04,M&S C05, M&S C10A, M&S C12A, M&S C37
BS 1006,JIS L0844
Feature:
1.To determine the Colour Fastness to Washing or Dry Cleaning.
2.Latest Ergonomic design with customer friendly control panel.
3.Robust completely stainless steel body gives long life operations & durability.
4.Temperature upto 95°C with a Digital Temperature Controller.
5.Inching facility for loading and unloading of the beakers.
6.10Beakers of 550 ml. (For ISO)and 10beakers for 1200ml(For AATCC)
7.Special silicon gaskets for the beakers having very long life.

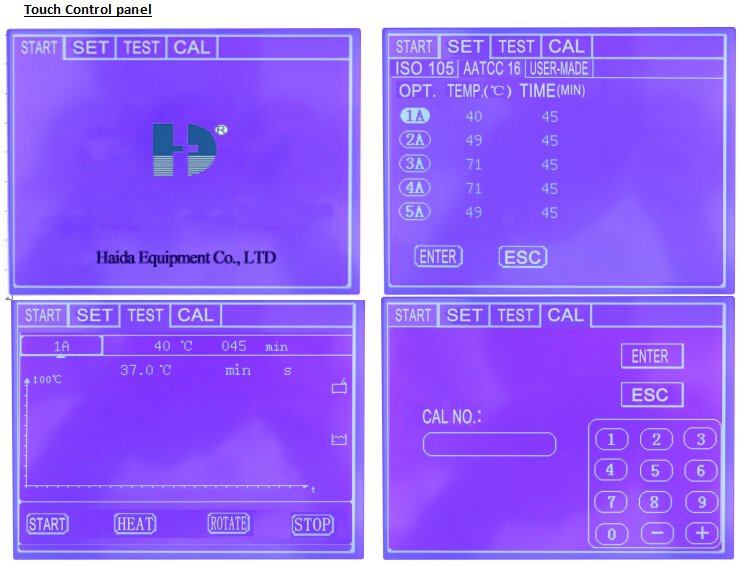

8.Touch control panel equipped with ISO&AATCC testing programs for easy operation.
9. No extra hardware, tools, or adapters are required for 1200ml containers.
10.Operators can enter and store custom designed tests.
11.Water bath is heated by stainless steel heater in a temperature rise rate of 2°C per minute.
12.Door safety switch inside the cabinet automatically stops the rotor from turning if the door is open.
Technical parameters:
|
Number of Beakers(Test Vessels) |
Total 20Nos. (10 Nos.(For ISO) and 10Nos. For AATCC) |
|
Standard seal for beakers |
12 no’s special neoprene gaskets |
|
Volume of each beaker |
as per ISO:550 ml; as per AATCC:1200ml |
|
Distance from shafts |
45 mm |
|
Speed of rotation |
40 ± 2 rpm |
|
Temperature Controller |
TI-LM35 type (up to 99.9°C) L/C – 0.5°C |
|
Temperature Regulation |
± 2.0°C (as per ISO) |
|
Control mode |
LCD touch panel |
|
Power supply |
220V, 50Hz |
|
Weight |
100 Kg |
|
Dimensions |
800 x 500 x 1000 mm |

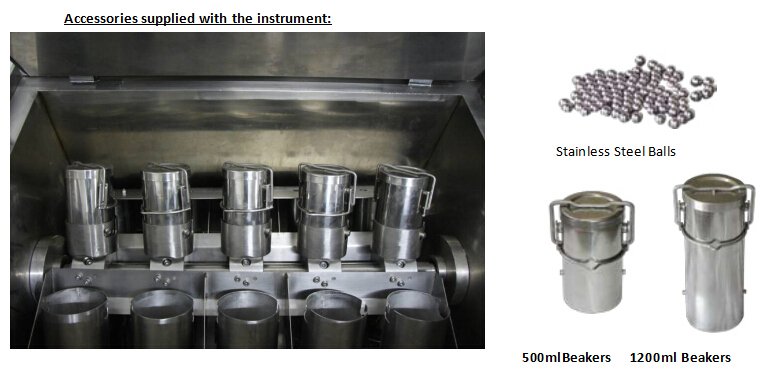

5 Accessories:
1.Main Unit:01 No.
2.Beakers (Pots):10 Nos for ISO, 10 Nos. for AATCC
3.Gaskets – (Fitted in the Beakers):12 Nos.
4.Stainless Steel Balls (Pack of 100):01 No.
5.Measuring Plastic Beaker (100 ml):01 No.
6. Beaker:10No 550ml, 10No. 1200ml
7.Filter Unit – For taking out the S.S. balls from the beaker after testing:01 No.
8.Plastic Tubing (1½ Meters each) - for Outlet & Overflow Valves:01 No.
9.This User’s Manual:01 No.
10. Inspection & Conformance Certificate:01 No.
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
1. Pre-service
24 Hours online service for your consult.
Help choose right model,and a series of service,person,advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
4,Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
Company view:
TEST INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 3 years. TEST products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
Our Certificate:
Why choose us?
1. Considerate Service Different countries plugs, manually change the-voltage from 110V to 220V, insurance indicator.
2.Excellent After sale Service:
18 months warranty. Besides, we can help you to repair your problem controller freely, even it's
not from our factory. What you need to do is to send us the controller.
3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence
to us.
4.Good Packaging: Simulation Animatronic Customer Triceratops are covered with air bubble film
before put them into the wooden case, which not only has good shock absorption, impact resistance,
heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency
etc.
