CNC High Precision Image Measuring Equipment
CNC Optical Image Measuring Equipment

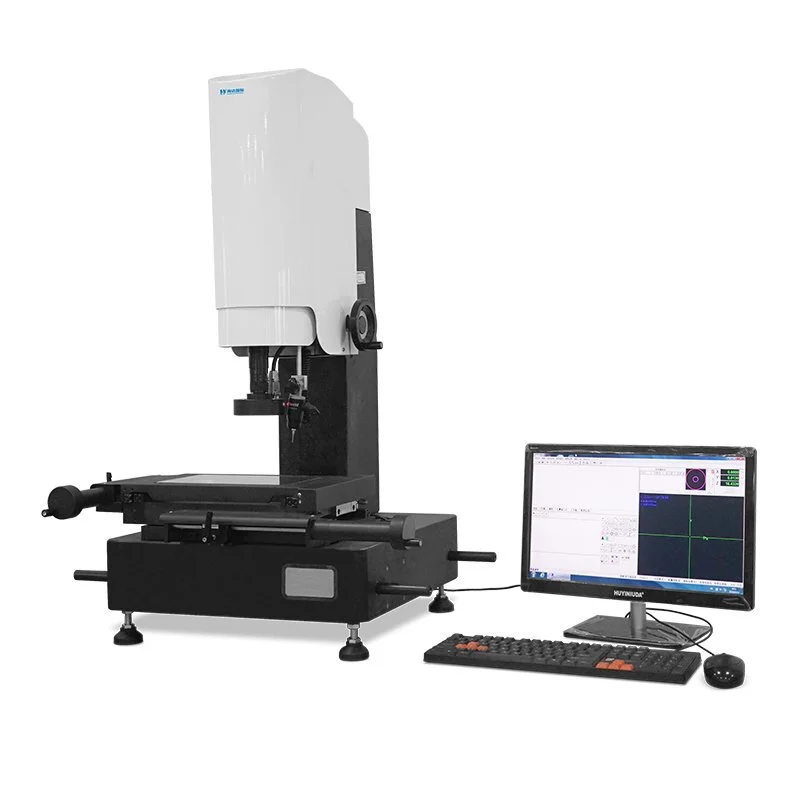

VMC-P Characteristics:
Creative modern-shape-design;
Fashionable auto-painting-craftwork;
Steady granite base;
Stable imported V-shape guide;
Precise metal and glass worktable;
High-speed 3-axis CNC driven motor;
Adjustable USB 40-division ring LED illumination;
Advanced Pomeas 0.7~4.5X Zoom lens;
Wonderful SONY 1/2`` Color CCD camera;
Powerful 3D measuring software QuickMeasuring 4.1 version.
VMC-P Specifications:
CNC Optical Image Measuring Equipment
Mode | Vexus VMC3020P | Vexus VMC3030P | Vexus VMC4030P | Vexus VMC5030P |
Order# | 526-301 | 526-331 | 526-401 | 526-501 |
Metal table size | 450x350mm | 450x450mm | 550x450mm | 650x450mm |
Glass table size | 350x250mm | 350x350mm | 450x350mm | 550x350mm |
Travel: X,Y | 300x200mm | 300x300mm | 400x300mm | 500x300mm |
Z-axis Travel | 200mm | 200mm | 200mm | 200mm |
Resolution | 0.0005mm | 0.0005mm | 0.0005mm | 0.0005mm |
Renishaw touch probe | MCP-K2(581-721) | MCP-K2(581-721) | MCP-K2(581-721) | MCP-K2(581-721) |
X,Y-axis accuracy | ≤(3+L/200)um | ≤(3+L/200)um | ≤(3+L/200)um | ≤(3+L/200)um |
Measuring software | QM4.2 | QM4.2 | QM4.2 | QM4.2 |
Nte weight | 300kg | 320kg | 460kg | 540kg |
Dimension(mm) | 700x600x900 | 760x600x900 | 950x590x1000 | 950x700x1100 |
VMC-P Standard Delivery:
CNC Optical Image Measuring Equipment
Standard Delivery | Order# | Standard Delivery | Order# | Standard Delivery | Order# |
Measuring Software | QM4.2 | CCD Camera MC3 | 484-123 | Pomeas detent zoom lens | 421-101 |
Calibration Block | 581-801 | Capture Card 7130 | 527-130 | LED Lightsource | 425-400 |
Scale Transfer U3 | 564-301 | Renishaw Probe MCP-K2 | 581-721 | Dell PC System |
VMC-P Optional Accessories:
Optional Accessories | Order# | Optional Accessories | Order# | Optional Accessories | Order# |
Renishaw Probe MCP-K1 | 581-711 | Pomeas motor zoom lens | 421-001 | Operation Joystick | 581-542 |
Renishaw Probe MCP-K3 | 581-731 | Pomeas Coaxial zoom lens | 421*001 | Working Cupboard ST03 | 581-631 |
Characteristics:
CNC Optical Image Measuring Equipment
Graph function key, graph constructive functional key and visual tool functional key is separated by color and grouped tactically, it makes the communication between operator and instrument quickly and friendly, and it improves the speed of human measurement obviously.
Graph function key is black.
Graph constructive key is red.
Visual tool function key is black and green.
