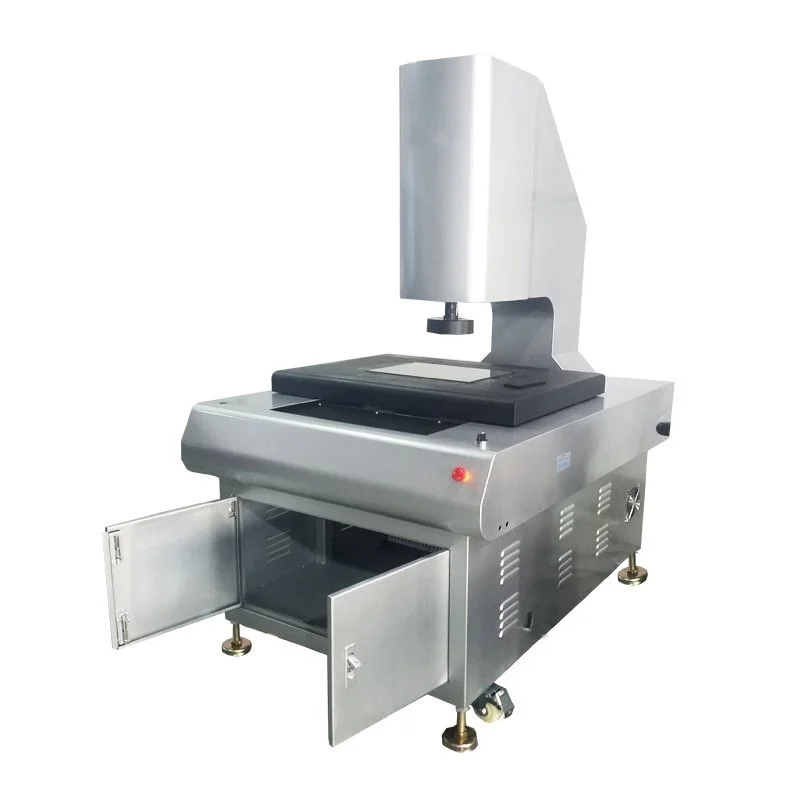

Automotive Parts Image Measuring Instruments
Product introduce:
Automotive Parts Image Measuring Instruments mainly detects the basic measurement and coordinate translation of the point, line, circle, distance, angle and space of the seat parts.
Main feature:
1, modern design, compact structure, easy operation.
2, length, angle measurements of realization.
3, non-spherical condenser illumination, bright field of view, illumination uniformity, image clarity.
4, multi-function digital display systems, instruments with RS232 interface and data processing software.
5, strong heat system, heat dissipation, good performance, more stable.
6, using high brightness, long life lighting.
Technical parameter:
|
Model |
HD-U803 |
HD-U803-1 |
H HD-U803-2 |
|
|
Table |
Metal table size(mm) |
340 × 152 |
350×170 |
450 × 280 |
|
Glass table size(mm) |
196 × 96 |
246× 120 |
306× 196 |
|
|
X coordinate travel (mm) |
150 |
200 |
250 |
|
|
Y coordinate travel (mm) |
50 |
100 |
150 |
|
|
Z coordinate travel (mm) |
90(Focusing) |
100( Focusing ) |
100( Focusing ) |
|
|
Measuring accuracy (μm) |
3+L/50 |
3+L/75 |
3+L/75 |
|
|
X, Y Block, Digital Resolution |
0.001mm |
|||
|
Projection screen |
Size (mm) |
Ø312, Terms of Use>Ø300( Engraved with the word line m ) |
||
|
Rotation range |
0~360° |
|||
|
Rotation Digital Resolution |
1' or 0.01° |
|||
|
Mirror Matter |
Magnification |
10X( Necessary ) 20X(Option) 50X ( Option ) 100X ( Option ) |
||
|
Line field of view in object (mm) |
Ø30 Ø15 Ø6 Ø3 |
|||
|
Work in object distance (mm) |
77.7 44.3 24.5 25.3 |
|||
|
Data Processor |
DC-3000 multi-function data processing system, all the Chinese showed they can do more sampling, coordinate rotation, point, line, distance, angle measurement |
|||
|
Instrument lighting |
Transmission and reflection of light source are: 24V, 150W halogen lamp |
|||
|
Instrument Power |
110V/ 220V(AC), 50/60HZ, Total power 400W |
|||
|
Cooling method |
Forced air-cooled (3 axial fans) |
|||
|
Dimensions |
L × W × H (mm) |
792× 544 × 975 |
770 × 550× 1120 |
770 ×550× 1120 |
|
Weight |
Unit Kg |
150 |
150 |
150 |
|
Options |
Micro-printer, optical Edge Detector, M2D software; detailed description see Annex projector. |
|||
