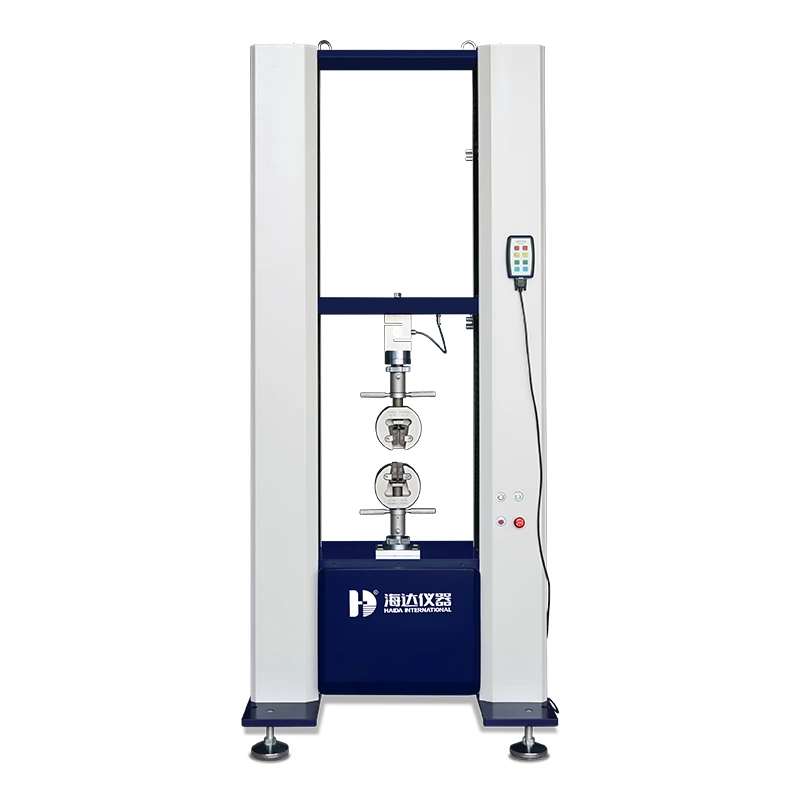

HD-B615-S 5T Tensile Tester

5T Tensile Tester

Applications:

HD-B615-S 5T Tensile Tester, is professionally specialized in plastic film, composite, soft packaging materials, plastic hose, adhesive, adhesive tape, medical adhesive, medical device, release paper, protective film, composite cover, metal foil, diaphragm, backboard material, non-woven fabric, rubber, paper and other products of tensile, peeling, deformation, tear, bonding, puncture force, opening force, low speed unwinding force, pull force and other performance tests.



Packing Material



Plastic Pipe



Metallic Material



Cable & Wire

Ten Processes Meet Variegated Requirements:

The machine integrates ten professional and independent test procedures, such as tension, peeling, tearing, heat sealing, constant extension and tension, pressure, puncture retention force, etc., providing users with a variety of test items.

It supports the downward pressure test such as rubber plug puncture and ampule breaking force, and the test speed can be set freely.

Intelligent design such as limit protection, overload protection and automatic return to ensure operational safety.

Excellent testing mechanism accuracy upgrade:

Equipped with force value testing system of global famous brands to provide force value accuracy better than level 0.5, better repeatability and more flexible testing.

Equipped with servo operation system of global famous brand and precision ball screw multiple axis positioning technology to provide displacement accuracy better than 0.5 level, stepless speed regulation, convenient use and more stable operation.

High End Embedded Computer System Platform  Safety And Easy:

Integrated system design, integration of instrument and software.

Support group test data comparison and analysis, with multiple unit conversion function

The system is embedded with USB interface and network interface to facilitate the external access and data transmission of the system.



Fixture

Various types of fixtures can be replaced to test the tensile effect of different materials



Sensor

Installed with safety cover to avoid interfer-ence by the outside world and make more accurate tests



Limit Protection

The limit lever is mainly used for misoperation or the machine keeps pressing down to protect the sensor without stopping



Operation Panel

With emergency button, up and down button to make convenient operation
