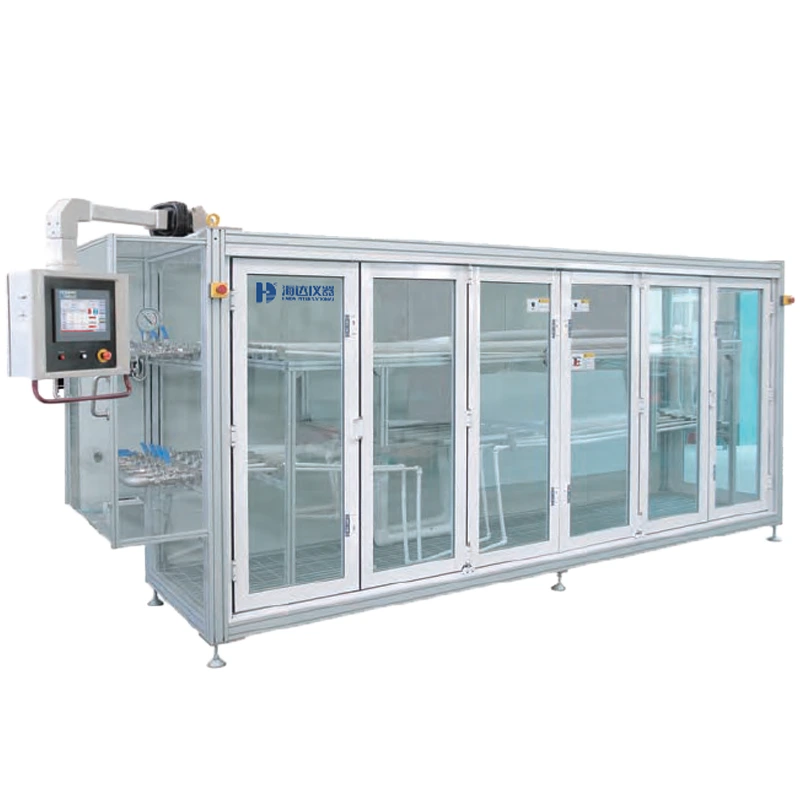

Plastic Pipe Thermal Cycle Testing Machine

Plastic Pipe Thermal Cycle Testing Machine is applicable to all kinds of plastic pipes, pipe fittings and pipe systems.

Model:

HD-R902

Inquiry

Write a Review

Product Description

Plastic Pipe Thermal Cycle Testing Machine is applicable to all kinds of plastic pipes, pipe fittings and pipe systems. Under the condition of pressure and different temperatures within the specified time After completing the test to check the leakage and rupture of pipes and pipe fittings.

Test standard

ISO1167, ASTM D1598, ASTM D1599, ISO10508 and the equivalent.

Plastic Pipe Thermal Cycle Testing Machine

Product Specifications

Model	HD-R902
Pressure range	4.00bar-16.00bar, 0.400Mpa-1.600Mpa (Customizable)
Pressure control accuracy	±0.05 Mpa
Number of test stations	6
Alternation time between hot and cold water	＜ 60s
Cycle period	300s-1200s
Maximum measured cross-sectional area	4200mm² or 6200mm²
Maximum straight pipe length of sample	3700mm
Control mode	PLC control
Display mode	touch screen display
Number of cycles	selectable 1-100000
Temperature range (cold water)	20℃ to RT (selectable) accuracy:±2℃
Temperature range (hot water)	RT to 95℃ (selectable) accuracy:±1℃
Temperature display error	1℃
Temperature uniformity	≤±1℃
Inlet and outlet temperature difference	2℃
Power supply	380V±10% 50Hz
Overall dimensions	4500(L)×3000(W)×2000(H）mm（6 stations）
Installation dimension	6000(L)×4000(W)×3000(H）
Optional function	A: Flow measurement and regulation (optional)
	B: Prestress application system (optional)
Model: HD-R902-200A	With Flow measurement and regulation
Model: HD-R902-200B	With Prestress application system
Model: HD-R902-200AB	With Flow measurement and regulation and Prestress application system

Products Advantages

Plastic Pipe Thermal Cycle Testing Machine 3

Best Quality

We have a number of professional suppliers which we have worked with over the 35 years, Our custom made furniture product manufacturing, Quality, delivery and Customer service.

Plastic Pipe Thermal Cycle Testing Machine 4

Reasonable Prices

We know the market well, so we will offer you the most reasonable prices possible. You may be pleasantly surprised and will be more cost effective in the long run.

Plastic Pipe Thermal Cycle Testing Machine 5

QC Team

We have our QC team here to help customers to check the goods throughout custom made furniture production and before loading with an AQL.

High-End Look

When paired with a loveseat or chair, this sofa sets the scene for everyday luxury. Style tip: add a faux fur throw in white for pure delight.

Product Characteristics

1. With the functions of specimen pre-treatment, real time monitoring，test data storage, data power-off protection (memory) and recovering when powered on, etc.

2. It is intelligent to distinguish the size and material of specimen, then provide perfect pressure rising solution and algorithm.

3. For the pipes with big rate of expansion has the properties of rapid pressure rising rate and steady at constant temperature.

4. Self-developed solenoid valve greatly raises its working life, further maintenance is not needed.

5. Friendly display interface provides multi-languages to meet the requirements of customers all the world.

6. Protective measures are from electric part, mechanical part as well as software.

7. Testing data memory time for pressure control unit: 7 days (offline).

Software Interface:

Fast and accurate: test can be completed in 10-160S

This machine is applicable to specimens, whose hardness range is from 30 IRHD to 85 IRHD. Equipped with devices for elastic materials and foaming materials to meet different testing requirements.

radio_button_checked_FILL0_wght400_GRAD0_opsz48 (2)

It adopts an arc dial display with 100 equal parts, owning higher accuracy relative to vertical scale.

It can display the maximum rebound value and reset the pointer manually after the test is completed.

The clamping thickness of the test piece is adjustable within the range, which is capable of clamping materials in different thicknesses.

The Simple structure facilitates easy operation and convenient maintenance.

Product Details
