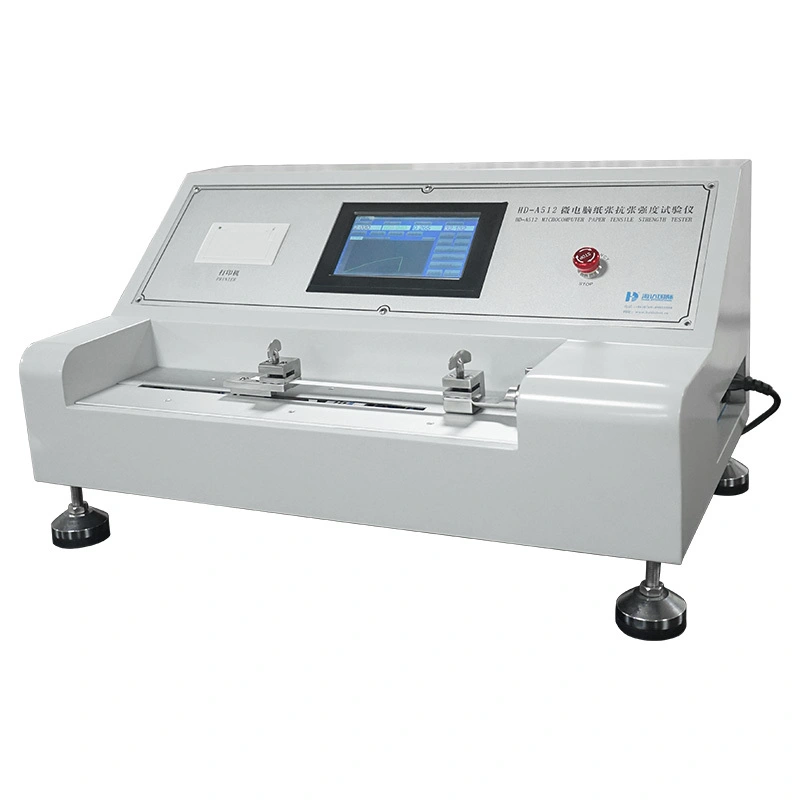

This machine is used to determine tensile strength, elongation, tensile energy absorption, tensile index, breaking length, energy absorption index, etc for paper. It is also can be used for plastic film and other non-metallic material.
Horizontal measurements have proven to be a more reliable and easier method to determine the strength properties of paper than vertical measurements.
Standard:
GB∕T 12914-2018、GB／T 1040、GB 13022-91、ISO 1924-2-2008 and so on...
1. Double guide rod and single ball screw drive to ensure the high-precision and stable operation of the instrument;
2. The force value test system provides force value accuracy better than 1.0 level, and the test data is accurate;
3. The instrument integrates a number of professional and independent test procedures such as tensile, tearing, constant tensile, etc., providing users with a variety of test items;
4. With travel limit protection, overload protection and other functions;
5. It has multiple control modes such as constant speed, constant deformation, constant strain, constant stress rate, constant strain rate, etc., and the control mode can be switched arbitrarily;
6. Support group test data comparison analysis, with multi-unit conversion function.
Capacity | 300N |
Motor | Stepper motor |
Driver | Stepper motor driver |
Control mode | Touch screen control |
Display mode | Touch screen display |
Screw | Ball screw |
Adjustable speed | 0.1～200mm/min |
Maximum stroke | 300mm |
Load resolution | 1/250000 |
Loading accuracy | ≤0.5% |
Effective test force value range | 5g～30kg |
Unit switching | Gf/kgf/n/kn/lbf/t |
Dimensions | About 700mmx420mmx325mm (LxWxH) |
Weight | About 50kg |
Power supply | 1∮ ac 220v |
Machine power | About 500w |
