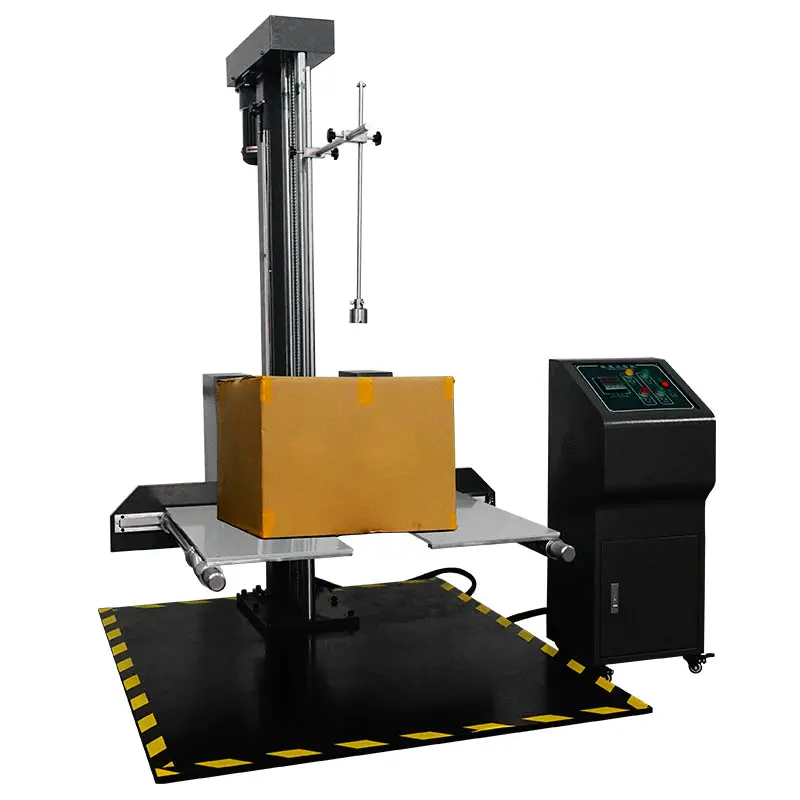

ISTA Packages Double Wings Drop Test Machine
Applications:
During the products handling or transport process, there may be drop/ fall, which results in damage within the products. Packages Double Wings Drop Test Machine simulates the drop/ fall of a finished product to evaluate the damage. Standard test of packaged freights (surfaces, corners, and edges), etc. can be performed efficiently with a high accuracy.
![HD-A520-1 Packages Double Wings Drop Test Machine 5]()
Loading
Simulate the degree of drop impact during loading
![HD-A520-1 Packages Double Wings Drop Test Machine 6]()
Transport
Simulating the effect of falling impact in the process of automobile transportation
![HD-A520-1 Packages Double Wings Drop Test Machine 7]()
Handling
Simulating the impact strength of the package in the process of handling
1.Outside material: advanced paint coat
2.It adopts double wings to fix the products well when testing.
3.Power system: drive device (imported motor + speed reducer +Axel+ upper and lower limitation + spring +electromagnet)+ dropping device(dropping standard board +magnet + safety spacing push rod + automatic return back + digital alto-meter +encoder + hydraulic pressure buffering device)
4.Control system: adopting electromagnet sensor control, the interface is easy to operate, high degree automatic control
5.Safety device: upper and lower limitation device, automatic off-power device if electricity leakage occurs
Item | Description |
Drop height | 400-1500mm (can be customized) |
Display method | Digital display |
Max. weight of sample | 60kg (can be customized) |
Max. size of sample | (L*W*H) 800*800*800mm |
Drop panel area | 1400x1200mm (material is Solid steel plate) |
Control box dimension | (L*W*H) 350*350*1100mm |
Deviation of drop horizon | Less than 1° |
Machine size | (L*W*H)1400*1200*2200mm |
