Microcomputer Compression Test Machine
Microcomputer Compression Test Machine
Compression test machine pdf
compression test machine video
Introduction:
Box Compression test machine used to detect compressive strength of cartons, containers and other packaging structure, dynamic holding pressure technology, simulate stacking the test of pile, in order to know the compressive strength and impact-resistant capacity of product packaging on the transportation, stacking process. This machine adopts Load Cell Sensor, the resistance values directly displayed on the screen through the computer.Its data can be used as packaging design, assembly and construction.
Standard Features
Item | Description |
Max. Force | 500 kg |
Load cell | 1 load cell |
Control system | PLC, touch screen |
Motor | AC motor, guild rod |
Force reading | Kgf, N, ibf |
Load cell Resolution | 1/100,000 |
Load Precision | within ±0.5% |
Parallelism of Platens | Parallel within ±2.5mm |
Effective test area | 400*500*550mm |
The min test height | 20 mm |
Test speed | 10 ±3mm/min (10-130mm/min can be adjustable) |
Report output | Mini-printer, thermal printing |
Data display | Load, displacement, speed |
Safety features | E-Stop Over-load protection Upper and lower limit switches |
Machine size | 800*610*1080mm |
Applications
1. Maximum load: test the maximum load of various corrugated cartons and beehive crates
2. Stacking test: stack test of various corrugated cartons and beehive crates

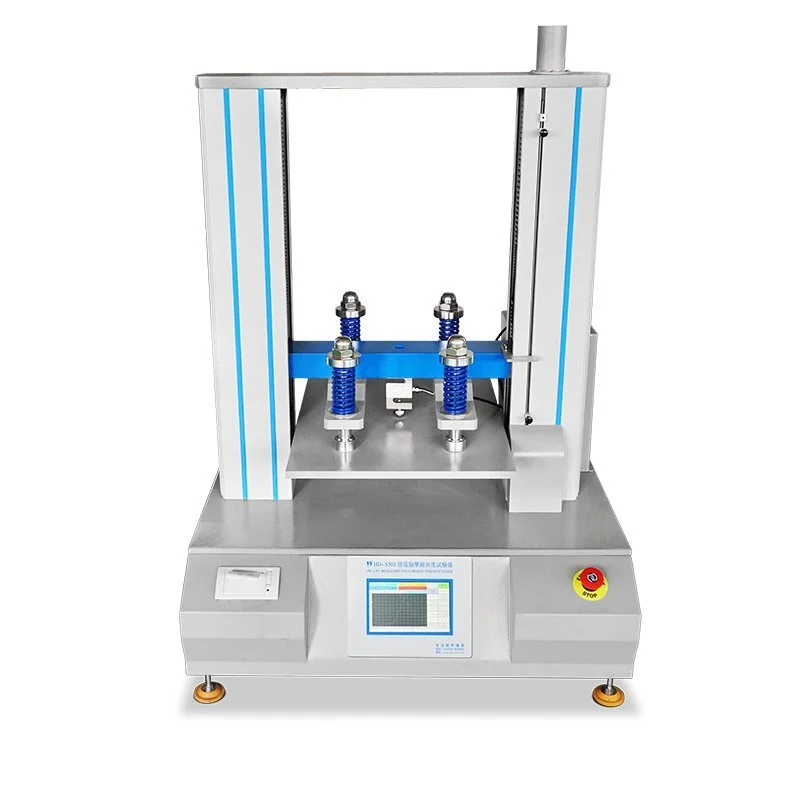

Compression Test Machine Images
Company Introduction:
HAIDA INTERNATIONAL is a professional manufacturer of various kinds of testing equipments over 10 years. HAIDA products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and applicable to all scientific research units, quality inspection institutions and academic fields.
See what company you will work with?
1. Largest TESTING EQUIPMENT manufacturer in China, One of Second Largest TESTING EQUIPMENT manufacturer around the world.
2. Professional Manufacturer of various kinds of testing equipments over 10 years, defect rate is controlled under 0.02%.
3. Completely Production Line. From Raw Material to Delivery, all links are under our control. The quality can be assured.
4. ISO 9001:2008 Quality Management System Certificate.
5. OEM/ODM Service. Just tell us your idea! Our R&D Team is standing by…
6. Our Marketing Investigation Department will send Marketing Research Report to you each season.
7. We are trusted by SCS, INTERTEK, HST, COFCO, ESC, KBMC, LENOVO, PANASONIC, EMC, etc.
8. We accept 100% inspection.
9. Guarantee Period: 365 days, After Sales Service Department provides professional service with you, any questions, just contact us.
