luggage drop impact testing equipment HD-A520-2
luggage drop impact testing equipment
product introduce:

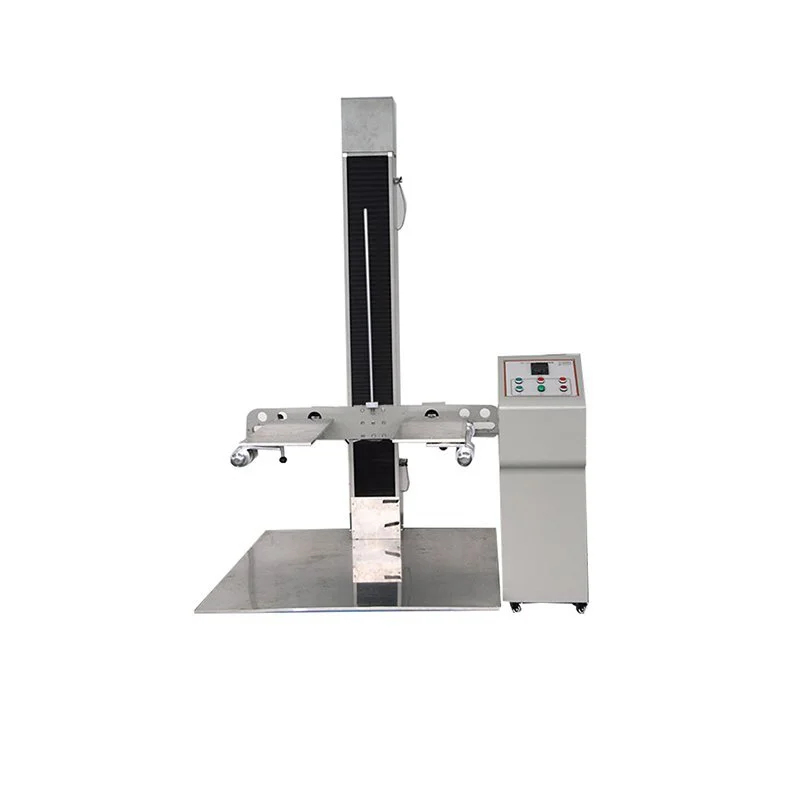

luggage drop impact testing equipment The unit will load the bags contained provisions put to a predetermined height And then let it drop,Thus samples box body (package body)can be testing enclosure ports, soundness and strength of the overall structure of box body fasteners, connectors, rod, walking wheel, axles, wheel frame and lock member.
Specifications
Display Method | Digital height indicator (optional) |
Drop Height | 400~1500 mm |
Single-wing Area (W×L) | 350×760 mm |
Drop Panel Area (W×L) | 1200×1400 mm |
Specimen Max. Size (L×W×H) | 1000×1000×800 mm |
Specimen Max. Weight | 60 Kg |
Outside Dimension (L×W×H) | 1400×1200×2200 mm |
Control Box Size (L×W×H) | 350×350×1100 mm |
Weight | 400 Kg |
Power | 1ø, AC220V/ 50Hz |
Transmit Approach | Electric Transmission |
Horsepower | 1/2 HP |
Design Criteria | ISO 2248, JIS Z0202-87, GB/T4857.5-92 |
Instrument features
1, microprocessor-controlled, high intelligence;
2, the drop height can be adjusted by the left stopper, automatic identification equipment stops, the test is simple and convenient.
3, the instrument uses wireless control, safe operation, so that the test operation safer.
