Led Xenon Aging Test Machine

Price:

FOB, CIF

Payment:

L/C, D/P, T/T

Package:

Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.

Minimum:

1 SET

Delivery:

15 days after order.

Country:

China

BrandName:

Inquiry

Write a Review

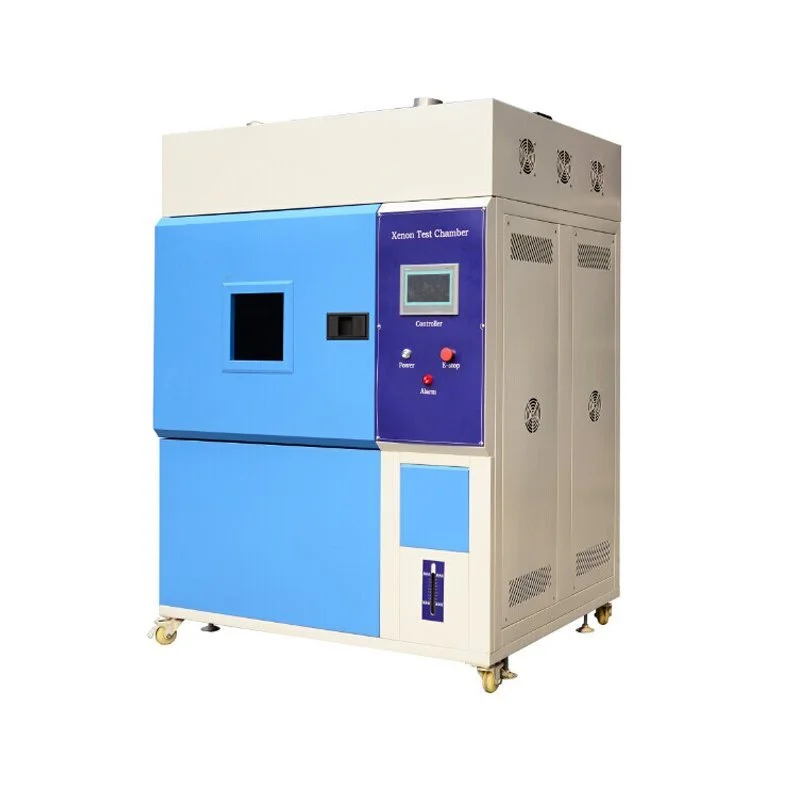

Led Xenon Aging Test Machine

product introduce:
Led Xenon Aging Test Machine can simulate full sunlight spectrum xenon arc lamp to reproduce the destructive waves of light of different environment, for scientific research, product development and quality control to provide the corresponding environmental simulation and accelerated test ,main for Solar lights, garden lights, buried lights, tunnel lights, car lights, fountain lights, the display etc led lights series.

MAIN FEATURE:

1, Ventilation system: Automatic controlled by temperature controller, and inner chamber cooled by refrigerating system

2, Back panel thermometer: adopt wired transmission technology, which highly improve the control accuracy.

3, Temperature sensor: PT100 platinum resistance temperature body.

4, Equip with intelligent temperature and humidity controller, with PID adjustment and rapid self-turning. It can set several parameters to do cyclic test, directly digital temperature display for easy reading.

5, Multiple protective devices: Over temperature protection, water leakage alarm, over pressure of compressor, electricity leakage protection, alarm and auto power offer protection. In order to protect Xenon light, the light will turn off automatically once open the door.

MAIN PARAMETER:

Item	Specification
Internal Dimension (WDH)	800800800mm
External Dimension (WDH)	145015002000mm
Inner chamber material	SUS 304 # Stainless Steel, Anti-rust, easy to clean
Outer chamber material	Stainless steel
Chamber Temperature	40±3℃
Temperature Uniformity	≤3℃
Blank panel temperature	65±3℃
Humidity Range	55%-90%
Irradiated intensity	0.35±0.02w/m²at 340nm (within±10%)
Xenon lamp power	6.KW water-cooled xenon lamp x 1pc
Control system	Siemens PLC controller, auto display irradiance
Distance from specimen to arc center	250~300mm, Effective exposure area 6400cm²
Filter	Borosilicate filter inside and outside
Water pressure at nozzle	1 - 1.5 bar
Sample rack	Stainless steel rotary sample rack, 3-7rpm
Door seal	Silicone rubber seal
Temperature sensor	PT100 high precision temperature sensor
Air circulation system	Stainless steel centrifugal rotor vane to improve the uniformity of temperature and humidity
Cooling ventilator	Automatic controlled by temperature controller, and inner chamber cooled by refrigerating system
Cooling ventilator	France Tecumseh compressor
Power	AC380V, 50Hz, three phase
Safety Protection	Over heat protection for fan, Over load protection for cooling system, Over pressure protection for cooling system, Over temperature protection, Over heat and over flow protection for water pump, Leakage protection, Water shortage protection, Auto stop after failure warning
