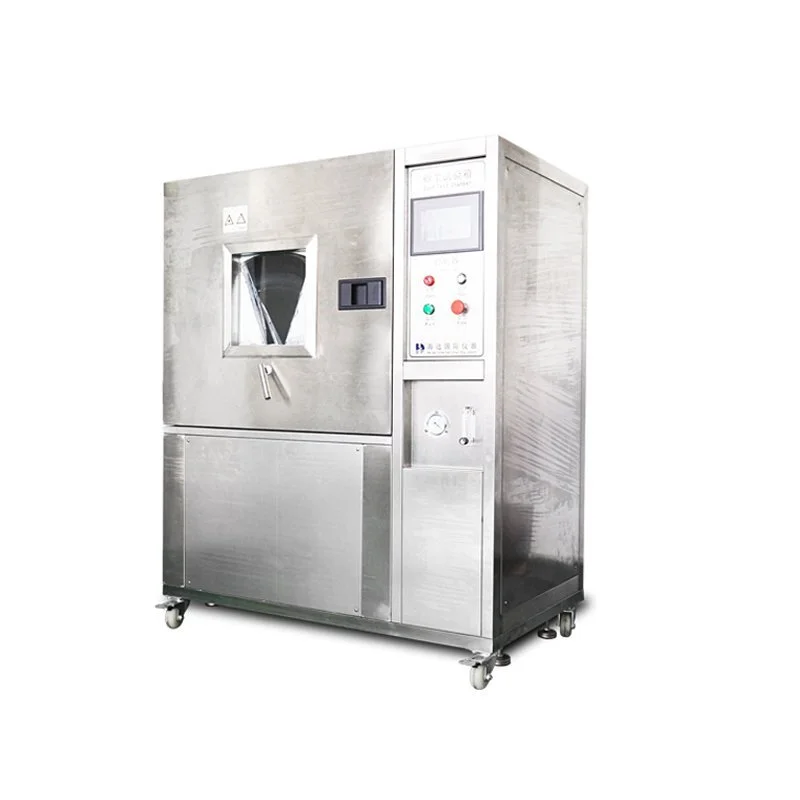

Led Dust Test Chamber
Led Dust Test Chamber
Product introduce :
Led Dust Test Chamber is suitable for shell sealing performance testing products, mainly used for the standard stipulated in the protection grade of the test IP5X and IP6X two grades.Mainly is to simulate sandstorm weather on locks, LED prodcuts like solar lights, garden lights, buried lights, tunnel lights, car lights, fountain lights, the display...etc the damage caused by the electricity meter and other products.
CHAMBER DESIGN FEATURES:
1, Chamber material: SUS#304 stainless steel;
2, Transparent window is convenient to observe specimen during testing;
3, Blow fan adopts stainless steel shell, high sealing and wing speed, low noise;
4, Inside the shell is the funnel type, vibration cycle can be adjusted, dust free float in the sky falling to blowing the hole together
STANDARD FEATURES
Item | Specification |
Inner chamber size (L*W*H) | 1000*1000*1000mm |
External chamber size (L*W*H) | 1200*1650*1900mm |
Packaging dimensions (L*W*H) | 1500*1850*2100mm |
Testing time | 0.1s～999hr, adjustable |
Dust concentration | 2kg/m3~5kg/m3, should be replaced in every 20 tests |
Dust type | Powdered cement, talcum powder |
Blower | Centrifugal fan |
Internal chamber material | SUS#304 stainless steel |
External chamber material | Stainless steel |
Door material | |
Controller | PLC controller, touch screen a. Blowing dust time (Stop/Blow) h/m/s b. Cycle time: can be adjusted c. Pre-set test time: 0s ~ 999h99m99s d. Specimen opening: off – on - off |
Power supply | single-phase, 220V±10%, 50/60Hz (can be appointed) |
Vacuum system | Pressure gauge, air filter, Pressure regulating FRL, connecting pipe, Vacuum pump |
Vacuum pump | 60~600L/h |
Power socket inside chamber | Dust proof power socket for specimen opening |
Test criteria | IEC 60529 – IP5X & 6X |
CHAMBER DESIGN FEATURES:
1, Chamber material: SUS#304 stainless steel;
2, Transparent window is convenient to observe specimen during testing;
3, Blow fan adopts stainless steel shell, high sealing and wing speed, low noise;
4, Inside the shell is the funnel type, vibration cycle can be adjusted, dust free float in the sky falling to blowing the hole together.
