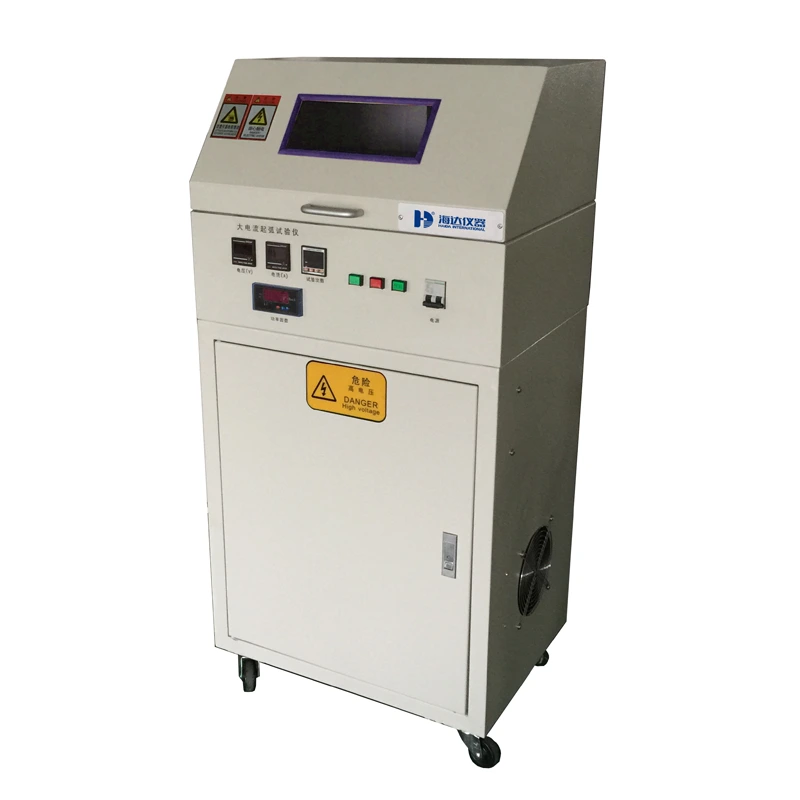

High-Current Arc Resistance to Ignition Tester

This tester is designed to evaluate the arc resistance performance of electrical/electronic products, household appliances, and their materials.

Model:

6009-HD

Inquiry

Write a Review

Product Description

This tester is designed to evaluate the arc resistance performance of electrical/electronic products, household appliances, and their materials. It simulates leakage currents between live parts of opposite polarity or between live parts and grounded metal components, measuring and assessing the arc resistance of insulating materials under specified voltages.

Compliance Standards: IEC 60950, GB/T 4943

High-Current Arc Resistance to Ignition Tester

Product Specifications

Model	6009-HD
Test Voltage	220V–240V
Electrode Separation Speed	254mm ±25mm per second
Arc Frequency	Approximately 40 arcs per minute.
Test Electrodes	Fixed Electrode: Solid copper conductor (Ø3.5mm) with a 30° beveled tip
	Moving Electrode: Stainless steel rod (Ø3mm) with a 60° conical tip
	Electrodes are positioned at a 45° angle to the horizontal plane; tip curvature radius <0.1mm.
Short-Circuit Current	Adjustable inductive load to achieve a power factor of 0.5 and short-circuit current of 33A
Key Features	Integrated test chamber and load box (upper section for testing, lower for load). Enclosure: Painted steel with stainless steel/brass components. Electrodes: Copper (fixed) and stainless steel (moving), resistant to high temperatures and corrosion.
Power Supply	AC 220V, 50Hz
