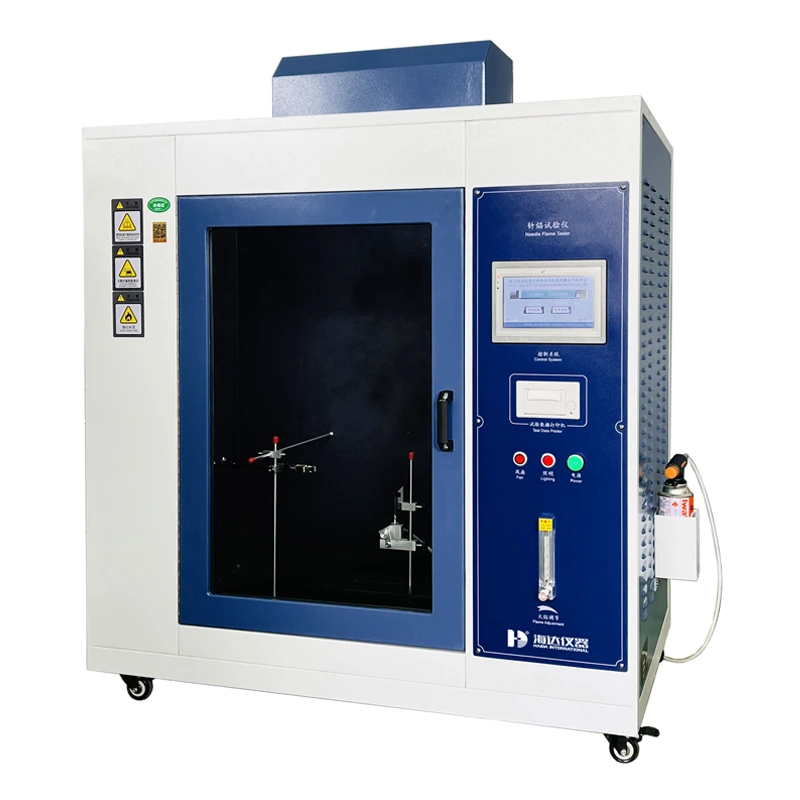

Needle Flame Test Instrument

This instrument simulates small flames generated under fault conditions (e.g., leakage currents, overheating, poor contacts) to assess fire hazards.

Model:

6012-HD

Inquiry

Write a Review

Product Description

This instrument simulates small flames generated under fault conditions (e.g., leakage currents, overheating, poor contacts) to assess fire hazards.

It is applied when glow-wire or horizontal-vertical flame tests are unsuitable for small components. If a sample ignites during glow-wire testing, the needle flame test further evaluates combustion risks. Suitable for parts of electrical/electronic products and household appliances (e.g., terminal blocks, centrifugal switches, rice cooker sockets).

Compliance Standards: IEC 60695-11-5, GB/T 5169.5, IEC 60884-1, GB 2099.1, VDE 0620, IEC 60335-1, GB 4706.1, UL 60065

Product Specifications

Model	6012-HD
Chamber Volume	≥0.5 m³, with glass observation door
Internal Illuminance	<20 Lux
Fuel	Butane gas (≥95% purity); no air ingress into burner tube (user-provided)
Burner Specifications	Length: ≥35mm; Inner diameter: Ø0.5mm±0.1mm; Outer diameter: ≤Ø0.9mm.
Flame Height	Adjustable: 12mm±1mm (includes measuring gauge).
Flame Temperature	100°C±5°C to 700°C±3°C in 23.5±1 seconds. K-type armored thermocouple (Ø0.5mm, imported); optional calibration device included.
Temperature Display	Range: 0–1000°C; Resolution: 1°C
Timer	Adjustable: 0–99 minutes 99 seconds; Resolution: 0.01s; Configurable ignition/duration recording.
Drive Mechanism	Motorized
Key Features	Automated control: Burner moves to sample position, shuts off gas post-test, and retracts. 3D-adjustable fixture, integrated ventilation/lighting, and user-friendly operation.
Power Supply	AC 220V, 50Hz
