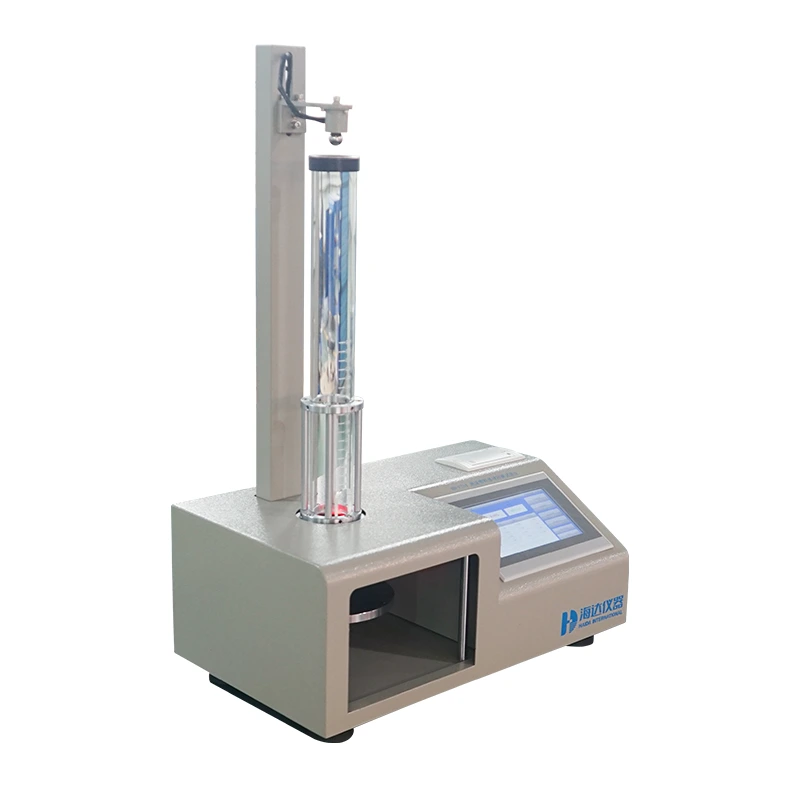

Foam Drop Ball Rebound Tester
APPLICATIONS
This machine complies with ASTM D3574 and ISO 8307 test standards. It also complies with the test method of Japanese urethane foam SESN 3296 for car seat cushions. It is suitable for measuring the falling ball rebound performance of flexible polyurethane foam. This instrument uses a steel ball with a given diameter and mass to freely fall on the foam sample at a specified height, and calculates the maximum height of the steel ball rebound and the steel ball. The percentage of the drop height ratio is the rebound rate, and the rebound rate represents the rebound performance of the foam. The machine is controlled by a microprocessor, displayed in liquid crystal in Chinese, and can print test data. The machine has the characteristics of safe, reliable and high measurement accuracy.
GENERL SPECIFICATIONS
Packaging Dimensions: (WxDxH) 590*320*660mm
Power supply source: single-phase, AC220V±10%, 50/60Hz (can be appointed)
Gross Weight: 40kg
DESIGN STANDARD: ASTM D 3574, ISO 8307
STANDARD FEATURES
Drop height | 500±0.5%mm |
Drop ball | Diameter:￠16±0.05 mm, mass 16.8g ± 1.5 g |
Accuracy | <1.5% |
Display | LCD Touch Screen interface |
Sensor | Optical fiber sensor |
Test result | Rebound height, rebound rate and average rebound rate after 5 test times |
Sample size (L×W×H) | 100 mm×100mm× 50mm |
Machine dimension (L×W×H) | 575×305×630mm |
Test results | Output by built-in printer |
Power | 0.1KW |
Configuration:
Name | Details | |
Items | Documents | Operation Manual*1 piece; |
Power line | 1 piece | |
Plug | 1 piece(Per your local plug standard) | |
Optical fiber ranging sensor | 1 Set | |
Micro-Printer | 1 Set | |
Touch screen | 1 piece | |
PLC | 1 piece | |
Electrical accessories | 1 Set | |
Specimen holder | 1 Set | |
Packing box | 1 Set ( Two steel balls and one sampling rod ) |
