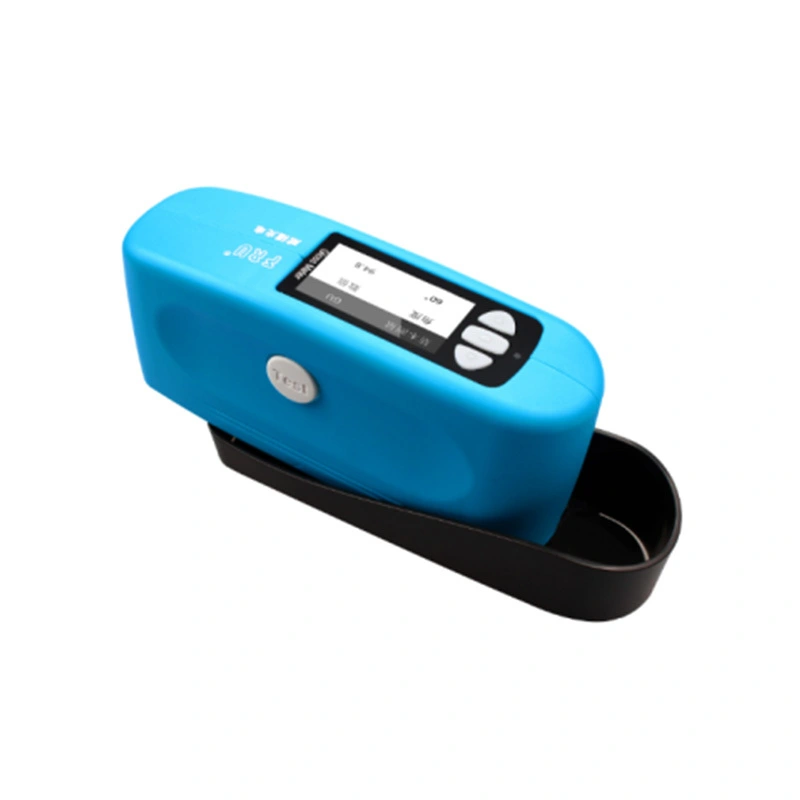

Gloss Meter
Gloss Meter
Products description:
It is mainly applied for surface mirror gloss measurement of metal and non-metal material, such as coating, printing ink, wooden articles, marble, granite, Vitrified polished brick, ceramic tile, plastic and paper.
Standard：SO-2813; ASTM-C584; ASTM-D523; DIN-67530; ASTM-D2457; JND-A60; JND-P60
Features:
1.Three projection angles: 20°, 60°, 85°
2.One operation can complete three angle measurement; the Measuring Light projection Angles conforms to the three kinds of measuring light projection angle specified in ISO 2813.
3.Choose measuring angle or angle combination according to user needs.
4.According to the needs of users, manually input the gloss data of the standard sample for detection.
5.Can store 50,000 testing records. 100 standard samples, 500 sets of test data can be stored under each standard sample.
Technical parameters:
Item | Description |
Measuring Range | 20°: 0-2000 / 60°: 0-1000 / 85°: 0-160 |
Projection Angle | 20° , 60°, 85° |
Measuring Spot | (Ellipse: long axis * minor axis) 20°: 10x 10 / 60°: 9x15 / 85°: 5x38 |
Measuring Mode | Automatic measurement, Manual measurement, Single measurement, Average measurement and Cross measurement for a variety of combination measuring mode. |
Language | Chinese / English |
Output | Connection the micro printer to real-time output of measured data |
Division Vale | 0-1000:0.1 1000-2000:1 |
Repeatability | 0-100:0.2 >100:0.2% |
Indication Error | ±1.5 |
Instrument Dimension | 159 x 49 x 72mm |
Accessories | Power adapter / User manual / Warranty certification / standard board |
Optional Accessories | Micro-printer |
