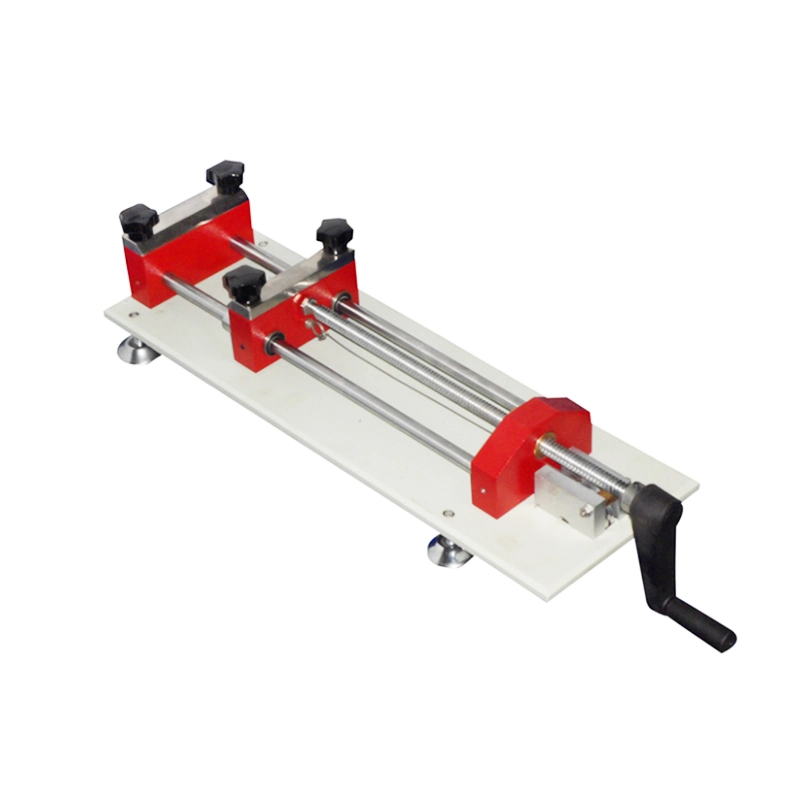

Fabric Extensometer

Fabric Extensometer

Products description:

It is used to determine the stretch & recovery of the fabric in case of both woven & knitted fabrics. A very useful Equipment to evaluate the Stretch & Recovery of woven, Knitted / Elastic or Lycra Fabric. It gives the percentage of stretch directly. The fabric can be loaded with weight from 1 to 5 Kg. The dead weights 2 Kg. (2 Nos.) and 1 Kg. (1 No.) are provided with the Extensiometer to load the fabric.

Usage:

To simply and economically determine the stretch and recovery of textile fabrics,both knitted and woven.

Testing standard:

BS 4294 Methods of test for elastic fabrics

Products features:

1.Specially developed equipment to evaluate stretch or extension of woven & knitted fabrics.

2.Stretch or extension percentage can be directly evaluated from the scale.

3.Two Scale graduated, 0-50% for woven fabrics & 0-300% for knitted fabrics.

4.Stainless steel knobs for tightening the jaws for holding samples.

5.Smooth, precision-engineered components for exceptional performance.

6.Complete withal accessories-two dead weight 2kg & one dead weight 1kg.

7.Supplied with calibration & inspection certificates

Products parameter:

Accessories supplied with the instrument:

1.Main Unit:01 No.

2. Dead Weight (1 Kg) :02 Nos.

3. Dead Weight (2 Kg) :02 Nos.

4.This User’s Manual:01 No.

5. Inspection & Conformance Certificate:01 No.
