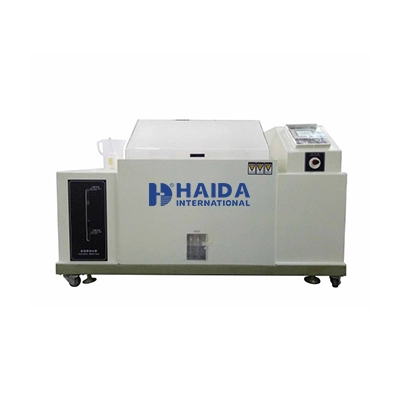

Cyclic Corrosion Salt Spray Test Chamber
Cyclic Corrosion Salt Spray Test Chamber
GENERL SPECIFICATIONS
Packaging Dimensions: (WxDxH) 2600*1450*1600mm
Power supply source: Single-phase, 220V±10%, 50Hz
HS Code: 8479899990
STANDARD PARAMETERS
Model | HD-E808-90C |
Internal size (L*W*H) | 900*600*500mm |
External size (L*W*H) | 2100*1250*1200mm |
Saturated Tank Temperature | Ambient ~60℃ |
Chamber Temperature | Ambient ~60℃ (No humidity if temp. below +25℃) |
Chamber Temperature fluctuation | ±2℃ |
Chamber Temperature Uniformity | ±0.5℃ |
Humidity range | 30% ~ 95% |
Temperature fluctuation | ±3%RH |
Salt spray test
| Concentration of salt solution: 5% Spray quantity: 1.0~2.0 ml / hr / 80cm2 PH value: 6.5~7.2 (at ambient temperature) |
Spraying method | Continuous and Periodic spray type |
Lab volume | 270L |
Brine tank capacity | 40L |
Multiple safety protection devices | Over pressure protection, over temperature protection, over load fuse protection |
Air source | 2.5HP Air pump, pump capacity with 60L or above (provided by buyer) |
Power supply source | Single-phase, 220V±10%, 50/60Hz |
Test Type | NSS,ASS,CASS |
Test Standard | ASTM G85-A1,A2,A3,;ASTM B117, ASTM B368 ISO9227, IEC60068-2 |
CHAMBER MATERIAL
Item | Specification |
Internal chamber | High temperature resistant 8mm PVC, anti-corrosion and easy to clean |
Chamber cover | High temperature resistant 8mm PVC, anti-corrosion and easy to clean |
Saturated barrel | High temperature and corrosion resistance, equipped with water level indicating device |
Heating system | Titanium electric heater, corrosion resistance |
Blower | Multi-blade blower |
Water pump | Corrosion resistant pump |
Solenoid valve | JPA series |
Sample shelves | Test Angle: 15° ~ 30°, adjustable |
Double vacuum organic glass | |
Controller | PLC controller, touch screen |
Water supply | Adopts automatic water charging system for long time operation. |
PRODUCT FEATURES
1, Double layers sample placing design to improve the usable area of internal chamber.
2, Adopt high precision temperature and humidity controller for temperature, humidity and drying tests.
3, Two poles air inlet decompression to ensure stable spray pressure.
4, Spray tower has conical disperser to lead and adjust the uniformity and dripping volume of salt fog.
5, Perfect safety protection device with audio alarm and auto stop function.
6, Have saturate process for spray compressed air to ensure stable test environment and prevent nozzles from block.
7, With time controller for auto power off when setting time arrive.
