Battery Thermal Shock Test Chamber

The Thermal Shock Test Chamber is designed to evaluate the resilience of materials, including structural components and composites, when subjected to sudden and successive exposure to high temperatures and extreme cold. This testing method simulates the rapid temperature changes that can lead to thermal expansion and contraction, potentially causing chemical or physical damage. The chamber is instrumental in swiftly assessing how materials react under these conditions, providing valuable insights into their performance and durability.

This testing equipment is particularly useful for a variety of materials such as metals, plastics, rubber, and electronics. The data obtained from thermal shock tests can serve as a critical reference for manufacturers to enhance the quality and reliability of their products. By understanding how materials behave under extreme temperature fluctuations, companies can make informed decisions to improve their product designs and materials selection.

Temperature range: -75℃~170℃ (non-standard customization is available)

Test duration：>30mins in high temperature chamber / low temperature chamber

Temperature deviation：3~5℃

Model:

HD-E703

Inquiry

Write a Review

Product Description

Thermal Shock Test Chamber is a necessary test equipment for the metal, plastic, rubber, electronic and other material industries. It is suitable for high and low temperature shock tests of complete machines and parts of aviation, aerospace, military, shipbuilding, electrical, electronic and other products, as well as storage and testing in high or low temperature environments. The test object is used to test whether the product is adversely affected by the rapid change of extremely high and low temperatures in an instant, and to test the chemical changes or physical damage caused by its thermal expansion and contraction in the shortest time, so as to evaluate the test product or the test behavior of the test product.

Hot and cold shock is divided into three-box type and two-box type: two-slot products need to move between high temperature chamber and low temperature chamber, and have the characteristics of short conversion time, generally within ≤10S.

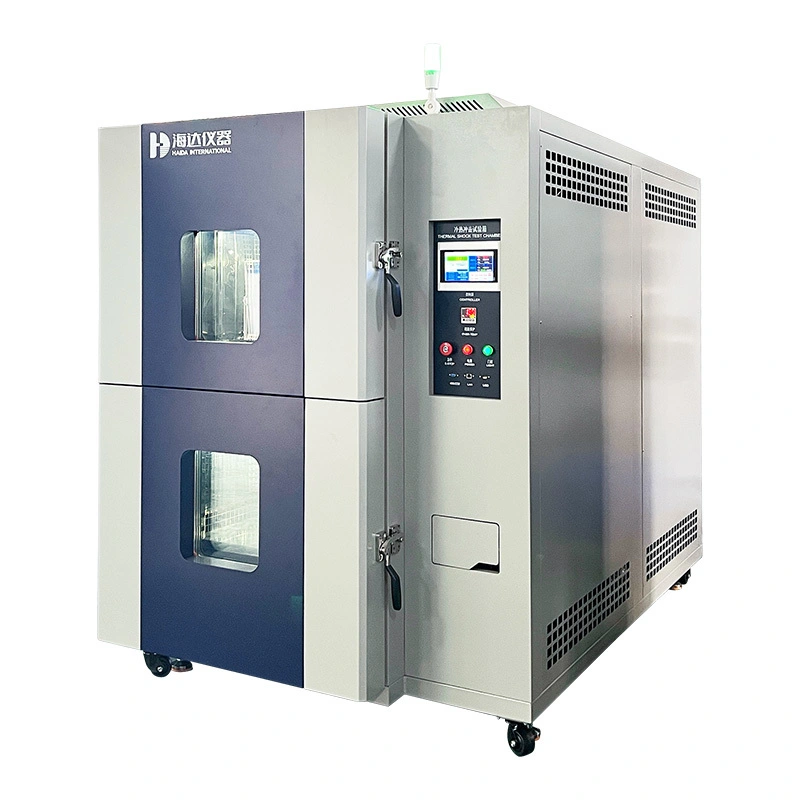

HD-E703 Thermal Shock Chambers（Two boxes）1

Product Specifications

OOur specialists can help you find the perfect thermal shock chamber.

Model	HD-E703-50	HD-E703-100	HD-E703-150
Basket internal dimension	350W350D400Hmm	500W400D500Hmm	600W500D500Hmm
External chamber dimension	1250Wx1720Dx1890H	1380Wx2080Dx2080H	1460Wx2230Dx1400H
High temperature chamber preheating range	Ambient to +160℃,<35min
Low temperature chamber precooling range	Ambient to -50℃,<70min
Test temperature	-40 to +150℃
Temperature deviation	3~5℃
Lifting switch time	≤10 seconds
Test duration	>30mins in high temperature chamber / low temperature chamber
Test hole for cable routing	Diameter 50mm on the left of chamber attach a silicone plug
External chamber material	High quality electrolytic steel plate spray with powder, antirust
Internal material	SUS#304 stainless steel
Thermal insulation material	High quality superfine glass fiber
Refrigerant	R404A / R23
Cooling method	Water cooling
Power supply	Three phase, 380V, 50Hz

Products Advantages

Substantive yet chic, we create magnificent designs that exudes grandeur without compromising on comfort and reliability. Our thoroughly engineered products combine convenience with sophistication.

Rapid Temperature Cycling

The chamber quickly alternates between extreme temperatures, simulating harsh environmental conditions.

Precision Control

Equipped with advanced control systems for highly accurate temperature and humidity settings, ensuring reliable and repeatable test results.

Accelerated Testing Efficiency

Significantly reduces testing time by quickly exposing products to thermal shock, allowing faster identification of potential material weaknesses.

High Capacity & Flexibility

Designed to accommodate various product sizes and testing volumes, offering flexibility for different testing scenarios and batch sizes.

Product Characteristics

Our Thermal Shock Test Chamber offers precise and reliable temperature cycling, designed to simulate extreme environmental conditions. Built with durable stainless steel and advanced insulation, it ensures high performance and longevity, providing valuable insights for product reliability and quality assurance.

LCD English microcomputer temperature controller, with high memory capacity, can save 100 programs, max 9999 cycles, each cycle max time 999hrs.

Three chamber structures, high temperature chamber, low temperature chamber and test chamber, control automatically, stay and switch time adjustable.

Protection alarm functions: short-circuits, Leakage, over temperature of work chamber; compressor over pressure, over load, short water…

Control interface will display alarm reason and provide check methods, machine has emergency stop button.

Cold and hot shock temperature recover within 5 minutes.

Product Details

The Thermal Shock Test Chamber includes essential components like high-precision temperature sensors, powerful compressors, efficient heat exchangers, and advanced thermal insulation.

Programmable Controller

Inner Chamber

Cooling System (Brand: German Bock)

Product Application

The is test chamber offers rapid, precise temperature shifts to rigorously test product durability under extreme conditions. Essential for industries demanding high reliability, it enhances quality control, reduces failure rates, and ensures your products meet the highest standards in performance and resilience.
