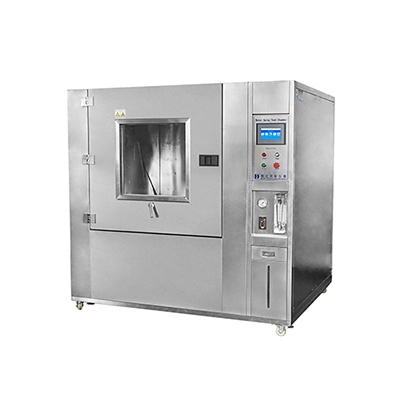

Battery High Quality Rain Resistance Test Chamber IPX9K
Battery High Quality Rain Resistance Test Chamber IPX9K
GENERAL SPECIFICATION
Package dimension: 1800*1450*2300mm
Power source: three-phase, AC380V±10%, 50Hz
Gross weight: 500kg
HS Code: 8424899909
TECHNICAL PARAMETER
Item | Specification |
Internal dimension (W*D*H) | 1000*1000*1000mm |
External dimension (W*D*H) | 1600*1250*2100mm |
Spray water temperature | 80℃ |
Spray water pressure | 80 to 100bar (8000 to 10000Kpa) |
Water flow | 14 to 16L/min |
Spray water distance | 10 to 15cm |
Spray water angle | 0°, 30°, 60°, 90°, each angle spray for 30 seconds |
Sample turntable | 5±1rpm |
Water spray interval time | 30 seconds (adjustable) |
Water cycling system | Built-in chamber bottom for recycling |
Controller | PLC touch screen |
Chamber material | Internal: SUS304 stainless steel, external: stainless steel |
