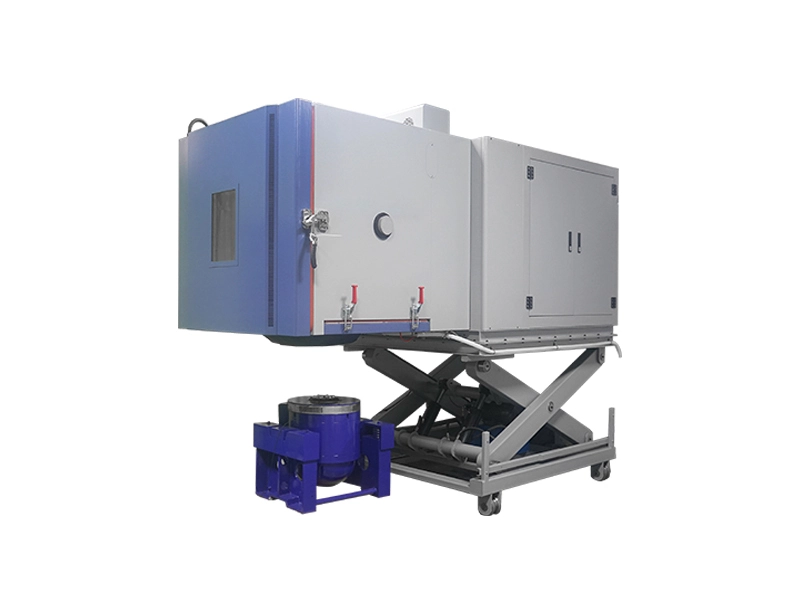

Internal chamber dimension (W*D*H)

1000*1000*1000mm

External chamber dimension(W*D*H)

1200*3000*3800mm approx.

Temperature range

-40 ℃~ 150℃

Temperature fluctuation

±0.5℃

Temperature uniformity

2℃

Cooling speed(temp. Range: 85C~-40C)

5℃/min in average; without loading

Heating speed(temp. Range: -40C~85C)

5℃/min in average; without loading

Humidity range

10~98%RH (please refer to the below humidity curve)

Humidity fluctuation

±3%RH

Internal chamber material

SUS#304 stainless steel, mirror finished

External chamber material

Stainless steel with paint spray

Cooling method

Water-cooled

Controller

Programmable control temperature and humidity

Can set different parameter for cyclic test

Insulation material

50mm high density rigid Polyurethane foam

Heater

Explosion-proof type SUS#304 stainless steel fins radiator pipe

heater

Compressor

German Bock compressor

Refrigerant

Environmental friendly refrigerant R449A/R23

Temperature sensor

PT-100 dry and wet bulb sensor

Observation window

Tempered glass

Testing hole

2 units with diameter 100mm, for cable routing

Sample tray

SUS#304 stainless steel, 2pcs

Safety protection device

Protection for leakage Over-temperature

Compressor over-voltage and overload

Heater short circuit

Max. Sine Force

3200Kg.f peak

Max. Random Force

3200Kg.f r.ms

Max. Shock Force

6400Kg.f peak

Frequency Range

2~3000Hz

Displacement (p-p)

51 mm

Max. Velocity

2m/s

Max. Table Acceleration

100g (without loading)

Armature Diameter

335mm

Effective Armature Mass

30kg

HE/ST screw dimension

17×M10

Max. Load Capacity

300kg

Magnetic Leakage

＜10gauss

Axial Vibration Isolation Frequency

<2.5Hz

Power

Three-phase, 380V, 50Hz

Machine dimension

845mm*790mm*840mm; without expander table

Vibration controller system

Controller Hardware

No of input channels: 02 analogue channels ADC: 24-bit Resolution

No of output channels: 01 DAC: 24-bit Resolution

USB 2.0 communication port

Controller Software Modules

Random Vibration (1-5000Hz), Sweep Sine Vibration (1-5000Hz), Classical Shock,

Resonance Search, Track and Dwell

and Self Calibration

Other accessory

Test Computer: LENOVO M4500

Printer: HP 1020plus

Customer Responsibilities

Installing all utilities where required, including connecting utilities to the equipment

Installation/rigging of equipment

Completing any necessary building alterations including roof penetrations

Customers responsible for any permits required by -

local/state government

Expander Size

600*600mm

Material

Aluminum alloy with hard anodized surface

Max. Work Frequency

Sine: 1000Hz

Random: 2000Hz

Weigh

32kg

Slip Table

Table Size

600*600mm

Material

Aluminum alloy with hard anodized surface

Max. Work Frequency

Sine: 1000Hz

Random: 2000Hz

Weight

35kg

Note:

1. High pressure oil-film bearing is used for better uniformity.
