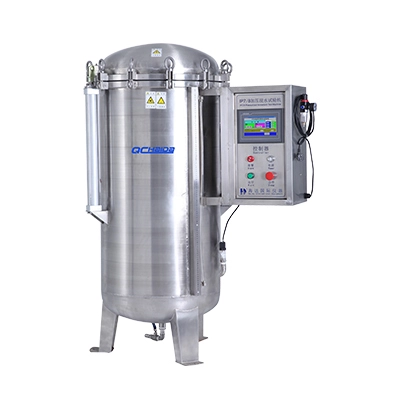

Battery Rain Resistance Test Chamber IPX78
Battery Rain Resistance Test Chamber IPX78
GENERL SPECIFICATIONS
Packaging Dimensions: (WxDxH) 1700*1380*2100mm
Power supply source: three-phase, 380V±10%, 50/60Hz (can be appointed)
Gross Weight: 400kg
HS code: 8479899990
STANDARD FEATURES
Item | Specification |
Internal dimension | Diameter 600 * height 1000mm |
External dimension | Diameter 820 * height 1200mm |
Chamber material | SUS#304, thickness 2mm |
Water depth | Simulate 50m depth by air compressor |
Water pressure | Ambient to 0.5MPa, pressure gauge accuracy 0.25 degree |
Timer | 0 ~ 99min, 99sec |
Sample lift device | Portable stainless steel basket |
Water level display | Water pipe with scale |
Protection device | Pressure protection and anti-explosive device, water drain and pressure release device |
Safety protection | Power overload protection, short circuit protection, grounding protection, alarm display |
