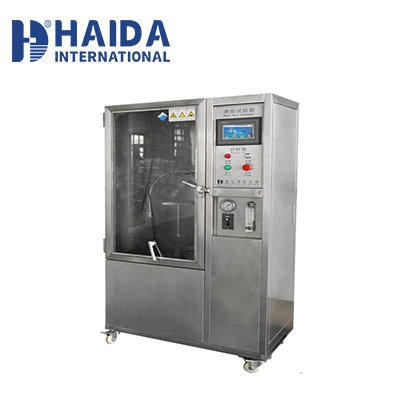

    Battery Rain Spray Test Chamber IPX3-IPX4


    GENERL SPECIFICATIONS


    Packaging Dimensions: (WxDxH) 1480*1300*1850mm

    Power supply source: 1-phase, 220V±10%, 50Hz (can be appointed)

    Gross Weight: 300kg

    HS Code: 8424899909



    STANDARD FEATURES


    Item

    Specification

    Internal dimension

    (W*D*H)1000*1000*1000mm

    External dimension

    (W*D*H)1300*1100*1700mm

    Oscillating tube

    Radius 400mm

    Oscillating angle

    IPX3: spray ±60° from vertical line to each side, total 120°

    IPX4: spray ±180° from vertical line to each side, total 360°

    Oscillating speed

    IPX3: 2*120° for 4s

    IPX4: 2*360° for 12s

    Spray nozzle

    Diameter: 0.4mm, removable

    Ensure the water sprays in a line and without tolerance

    Distance between two nozzles

    50mm

    Turntable diameter

    500mm

    Turntable rotation speed

    1-3 cycles/min

    Water flow of each nozzle

    0.07 L/min +5%

    Test duration

    1~999h999min, adjustable

    Pressure gauge

    80-150Kpa

    Distance from nozzle to specimen surface

    200mm

    Chamber material

    Stainless steel, with observation window

    Safety protection device

    Short circuit protection, grounding protection, water shortage protection, audible and visual alarm


    DESIGN DRAWING AS PER IEC60529
