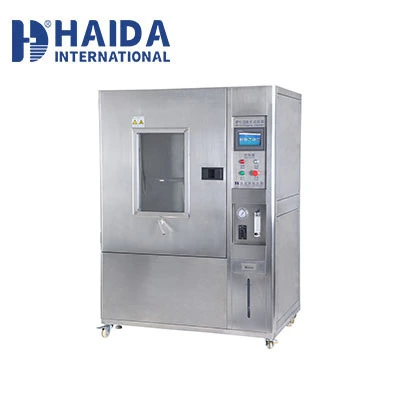

Battery Rain Spray Test Chamber IPX1-IPX2
Battery Rain Spray Test Chamber IPX1-IPX2
GENERL SPECIFICATIONS
Packaging Dimensions: (WxDxH) 1400*1600*2300mm
Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
Gross Weight: 300kg
HS Code: 8424899990
STANDARD FEATURES
Item | Specification |
Internal dimension (W*D*H) | 1000*1000*1000mm |
External dimension (W*D*H) | 1200*1400*2100mm |
Chamber material | Stainless steel #304, Waterproof Toughened glass observation window |
Sample turntable | Diameter 500mm |
Turntable rotation speed | 1~10r/min, height can be adjusted |
Water drop speed | 1 or 3mm/min, can be adjusted |
Drip box size | 800*800mm |
Distance from drip box to specimen surface | 200mm |
Water drop hole diameter | 0.4mm |
Distance from water drop hole | 20mm |
Test duration | 1~999h999min, adjustable |
Turntable angle for IPX2 | 15° inclined on either side of the vertical in two mutually perpendicular planes |
Safety protection device | Leakage, short circuit, motor over temperature… |
DESIGN DRAWING AS PER IEC 60529
