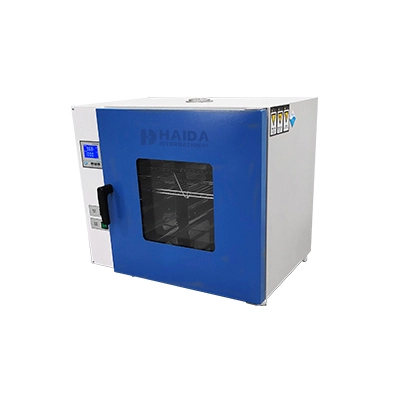

Battery Drying Oven
GENERL SPECIFICATIONS
Packaging Dimensions: (WxDxH) 650*720*610mm
Power supply source: single-phase, 220V±10%, 50Hz (can be appointed)
Gross Weight: 60kg
STANDARD FEATURES
Item | Specification |
Temperature range | Ambient ~ 250℃ |
Internal dimension (W*D*H) | 250W*250D*250Hmm |
External dimension (W*D*H) | 450W*520D*410Hmm |
Temperature control accuracy | ± 1℃ |
Controller | LED display, PID Temperature Control & Timing Device |
Internal material | Stainless steel # 304 |
External material | Galvanized steel plate |
Insulation material | High density silicate insulation fiber, high temperature resistant sealer |
Sample tray | Stainless steel, 2pcs |
Power | 600W |
Protection device | Over Temperature Protection, Heater Short Circuit, Motor Overheating & Leakage. |
Alarm | Audible and visual alarm |
MACHINE CONFIGURATION
1, Multiple centrifugal fan with air circulation system for uniform temperature distribution.
2, Intelligent temperature control system with digital display and PID control function.
3, With safety exhaust hole on the back side of the chamber, which can auto release pressure when has gas expansion in the internal chamber.
4, Control system has independent digital power offer protection system when over temperature.
5, High temperature resistant silicone sealing strip for safety and environmental protection.
6, Timing device.
