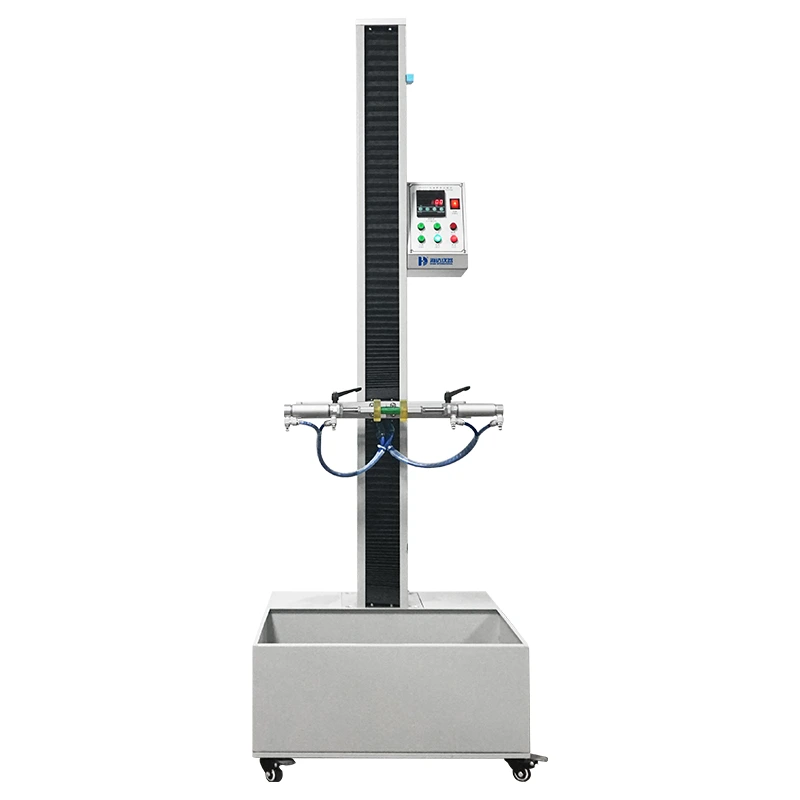

Battery Drop Test Machine
Battery Drop Test Machine
TEST PURPOSE
It suit for cell phone, battery, electronic dictionary, building intercom, CD/MD/MP3 and other small consumer electronic products and parts free fall test. This machine uses pneumatic structure, and it will be tested place in a special fixture, press the down button, when the cylinder is released, the test piece will be free fall test. Drop height is adjustable.
TEST STANDARD
UL 1642:2012; UL 2054:2012; IEC 62281:2004; UN 38.3
STANDARD FEATURES
Item | Specification |
Max. weight of test piece | 2kg±100g |
Drop height | 400 ~ 1500mm (adjustable) |
Drop height accuracy | ± 1mm |
Clamping method | air pressure adsorption |
Falling floor media | acrylic plate, stainless steel (customer-supplied) |
Drop method | free fall |
Bottom plate dimension | 560x410x10mm |
The use of air pressure | 0.4 MPa |
Machine dimension | 700x900x1650mm |
