Automatic Washer
Automatic Washer
Product description

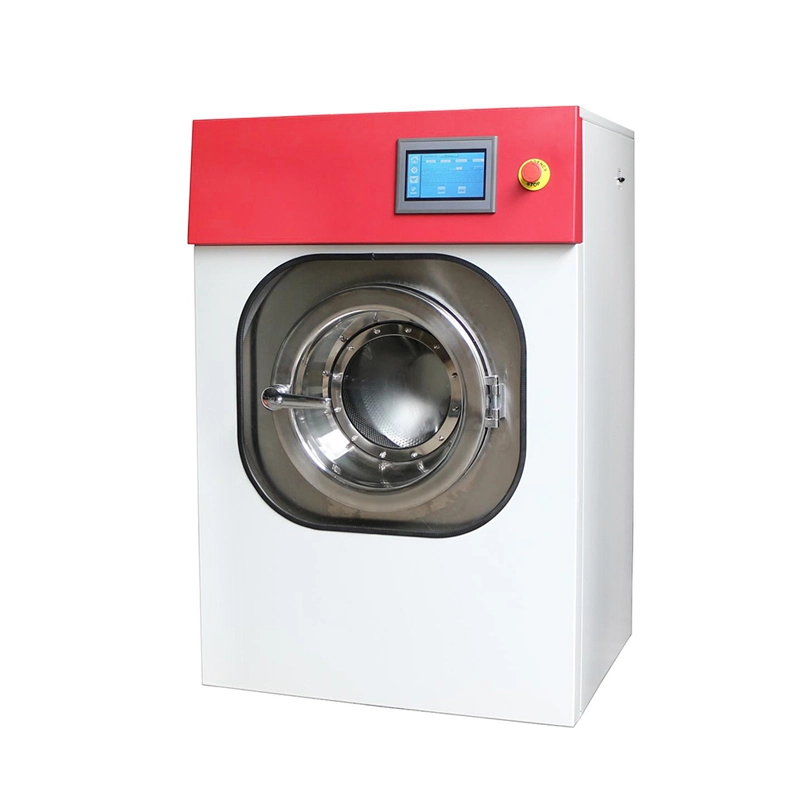

This machine is used for testing the dimensional stability of fabrics, clothing and other textiles after washing.
Test standard
ISO 6330-2012 , GB/T 8629 ,FZ/T 70009,IEC 60456
BS 4923 Methods for individual domestic washing and drying for use in textile testing
BS EN ISO 6330 Textiles. Domestic washing and drying procedures for textile testing
Technical parameter
Interior drum diameter | (51.5±0.5)cm |
Depth | (315±1)cm |
lift sheets | Numbers: 3pieces Angle :120°each one Height: 53±1 |
Outer drum diameter | 554±1mm |
Rotation Speed | Washing: 52 ± 2r/min Dehydration: 500 ± 20r/min (Low speed) 800 ± 20r/min(High Speed) |
Water level control | 1~20cm, digital control |
Temperature control | RT-99℃ digital control |
Heating power | 5.4KW |
Rotation action | Normal rotation time interval:(12±0.1)s Normal stop time interval:(3±0.1)s Ease rotation time interval:(8±0.1)s Ease stop time interval:(7±0.1)s Soft rotation time interval:(3±0.1)s Soft stop time interval:(12±0.1)s |
Supply water system | Supply water flow (20±2)L/min Water level checking: 3gear 100mm and 130mm Drainage rate>30L/min |
Washing procedure | 10 sets GB/T 8629 procedure 12sets ISO 6330procedure 3sets custom procedure 1 set manual single procedure |
Dimension | 805x705x1025mm |
Power supply | 3 phases 380V,50Hz,60Hz,6.5KW |
N.Weight | 240KG |
Features
1,Machine is fully comply with ISO 6330-2012 standard requirement.
2,Machine adopts the independent suspension roller technology, high shock resistance performance, ultra-quiet operation, do not need to foot fixed.
3, Using high-performance stepless variable speed motor, high speed coefficient of dehydration, digital set.
4, 7 inches big screen English language display, color touch screen operation.
5, using 32-bit architecture (m3 microprocessors, fast data processing, instruments and responsive, stable and reliable running.
6, Electronic pressure sensor with high precision, to ensure accurate and reliable water.
7 using optimized PID algorithm, temperature control, heating speed, small ripple control.
8, 10 sets of GB/T 8629 built-in programs, 13 sets of ISO 6330 procedures; 1 set of 3 sets of custom procedures, manual single program.
9, stainless steel metal handle and high pressure glass Windows, to ensure that the open door is more strong and durable.
