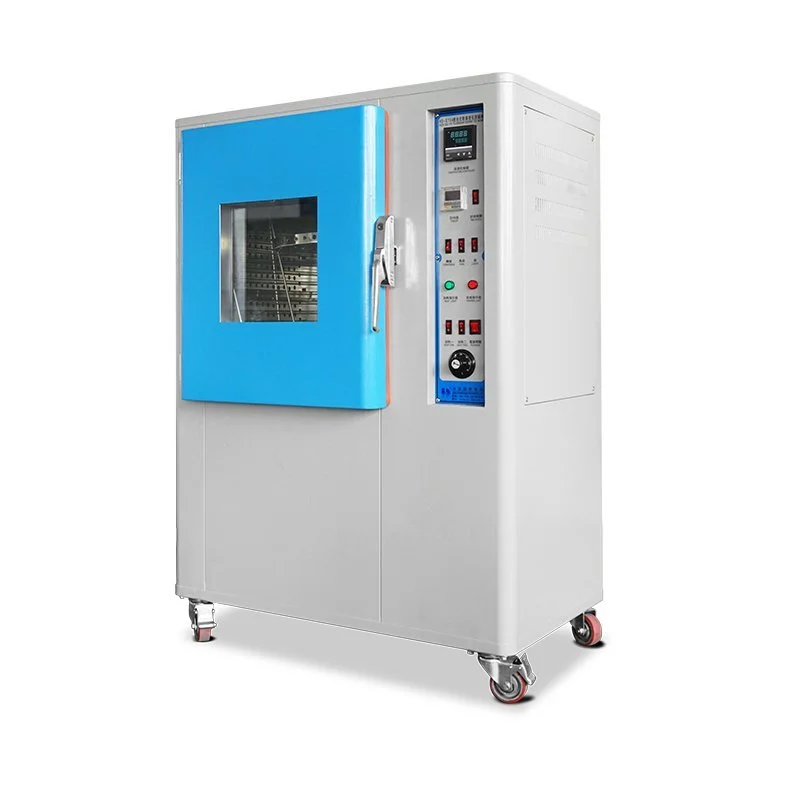

anti-yellowing aging chamber

1. Temperature Range—— Ambient Temperature~200℃

2. Control Mode—— Automatic Calculation Controller

4. Sample holder rotation speed—— Diameter 45cm, 10±2 roll/min

5. UV light source—— 300W UV lamp
6. The an-ti yellow aging chamber can do two tests: anti-yellowing and aging.

Applications Details:

Ø The machine can do two tests: anti-yellowing and aging.

Ø Anti-yellowing: to stimulate the environment condition, driven by the sun ultraviolet radiation. It’s generally thought that the appearance change at 50’C for 9 hours, in theory as exposed to atmosphere for 6 months.

Ø Aging: it can promote the increase of sulfur rubber deterioration so as to calculate the change rate of tensile and elongation before and after heat. Its generally thought that test for one day at 70C, in theory as exposed to the atmosphere for 6 months.

Standard Features:

Item Specification

1. Internal chamber size(W*D*H)—— 50*50*60cm

2. External chamber size(W*D*H)—— 114*74*130cm

3. Temperature Range—— Ambient Temperature~200℃

4. Control Mode—— Automatic Calculation Controller

5. Temperature display accuracy—— 0.1℃

6. Control accuracy—— ±3℃

7. Distribution accurac—— ±1℃ (ambient ~ 100℃)

8. Time memory—— 0-999 hours, Power Failure Memory Type, with Buzzer

9. Sample holder rotation speed—— Diameter 45cm, 10±2 roll/min

10. UV light source—— 300W UV lamp

11. Heating method—— Hot air circulation

12. Chamber material—— Internal: Stainless Steel SUS304;

13. External: ——Steel plate with baking varnish
