Product Description:

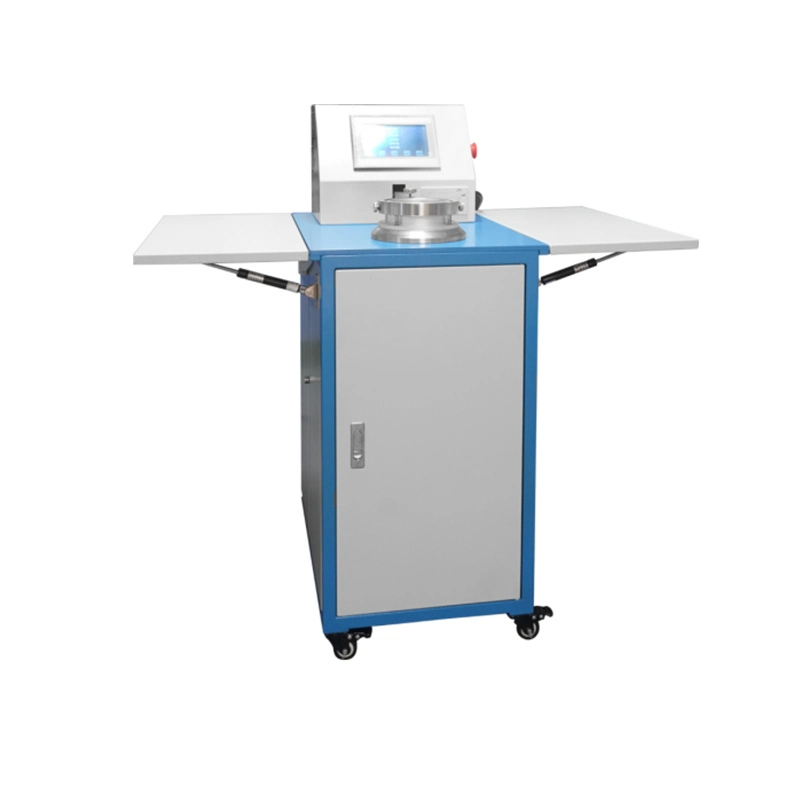

Air Permeability Tester is used for testing the air permeability of various textile fabrics, textile manufactures, including industrial fabrics, nonwoven fabrics and other materials permeable to air.

Application

Air permeability is an important factor in the performance of such textile materials as gas filters, fabrics for air bags, clothing, mosquito netting, parachutes, sails, tentage, and vacuum cleaners. In filtration, for example, efficiency is directly related to air permeability. Air permeability also can be used to provide an indication of the breathability of weather-resistant and rainproof fabrics, or of coated fabrics in general, and to detect changes during the manufacturing process. In specialty, industrial and military applications, it can play a vital role in protection. In every market, satisfying the demands of consumers and producers requires ways to accurately and repeatably test material air flow.

Usage

To determine the resistance of fabrics (woven, knitted and nonwoven textile materials) to the passage of air (air flow) under constant pre-set air pressure while firmly clamped in the test rig of selected test head/area.

Test Procedure

1.Test the conditioned specimens in the standard atmosphere for testing textiles, which is 21 ± 1°C (70 ± 2°F) and 65 ± 2 % relative humidity, unless otherwise specified in a material specification or contract order.

2. Handle the test specimens carefully to avoid altering the natural state of the material.

3. Place each test specimen onto the test head of the test instrument, and perform the test as specified in the manufacturer’s operating instructions.

4. Place coated test specimens with the coated side down (towards low pressure side) to minimize edge leakage.

5. Make tests at the water pressure differential specified in a material specification or contract order. In the absence of a material specification or contract order, use a water pressure differential of 125 Pa (12.7 mm or 0.5 in. of water).

6.Read and record the individual test results in SI units as cm³/s/cm² and in inch-pound units as ft³/min/ft² rounded to three significant digits.
