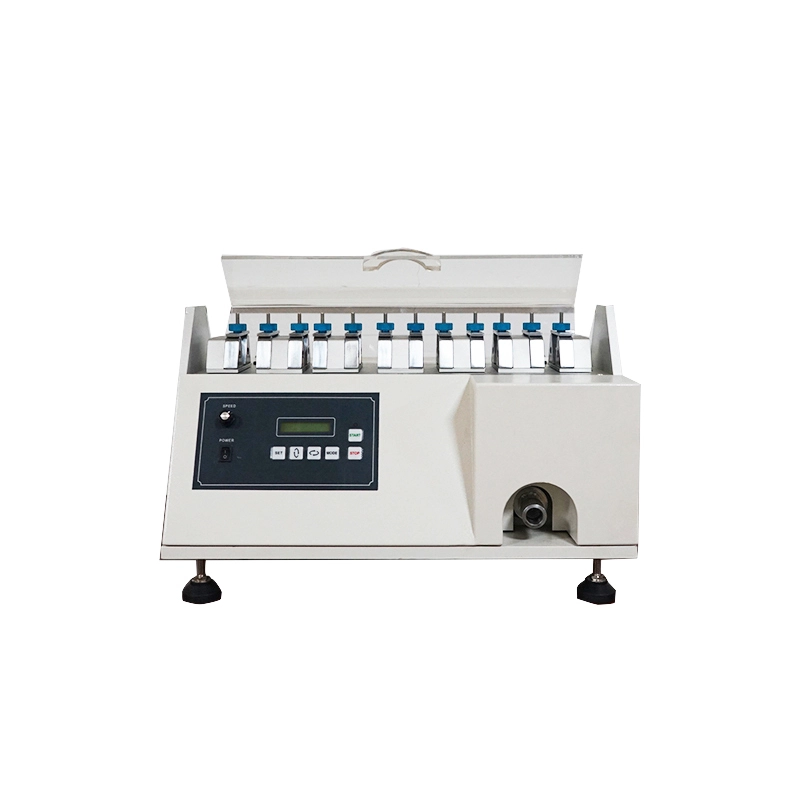

Vamp Telescopic Tester
Vamp Telescopic Tester
INTRODUCTION
1.This machine is a continuous telescopic quick action. It is used to simulate walking to observe how much the upper of the shoes is squeezed, stretched, folding and bent.
2.This machine is used to observe the situation of the test piece wrinkling, creasing or damage the case after the test, as the choice of the upper reference materials.
STANDARD
SATRA TM25, BS 3429, 1S0-4643 etc.
Test piece size | (64 x 64)mm |
Number of test pieces | 12 pieces |
Fixture close distance | (9.5+1.0) mm |
Counter | LCD0~999.999 |
Fixture | V-shaped, angle horse (40±11° top radius room (6.4+0.5) mm arc shape |
Machine Size | (LxWxH)785x460x320mm |
Motor | AC 300W |
Telescopic speed | (300 + 30) cpm |
Volume | approx. 550x350x 300 mm |
moving clamp stroke | (19 soil 1.5) mm |
weight | approx. 200kg |
Separation distance of the clamp | (28.5+2.51 mm |
Power supply | 1∮,AC220V, 5A. |
STANDARA FEATURES
