Temperature Humidity Chamber Programmable

Temperature Humidity Chamber Programmable

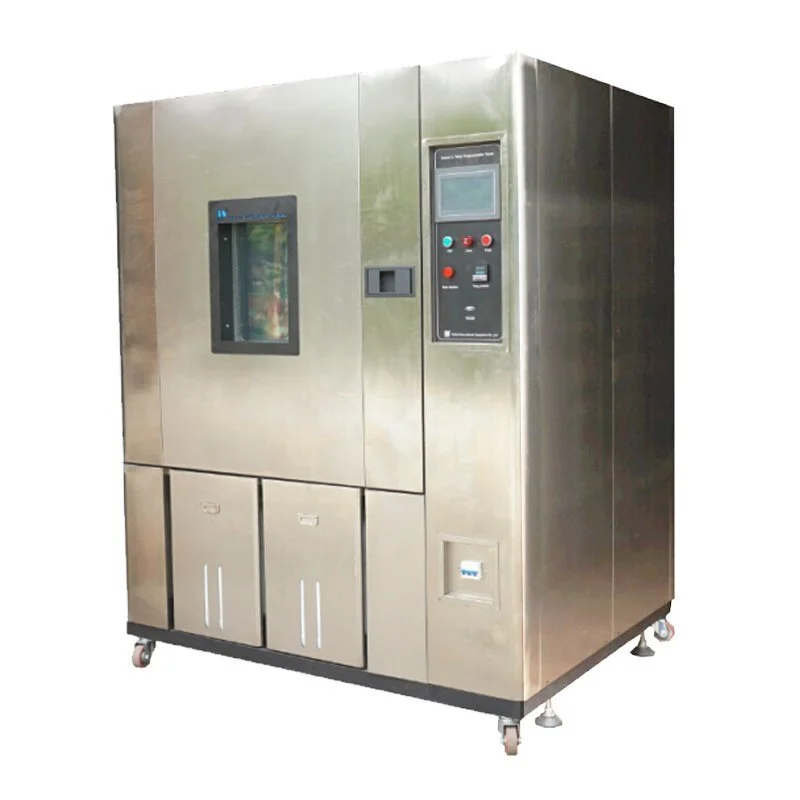

Temperature humidity chamber also as climate chamber is a efficient and accurate simulation temperature and humidity environment test chamber. There is a the latest programmable controller.programmable control temperature and humidity date ,and it can set different parameter accurate for cyclic test.LCD touch screen type operation interface is easy to operate.

Model-- HD-E702-800

1. Internal dimension (W*D*H)-- 1000*800*1000mm

2. External dimension (W*D*H)-- 1500*1180*1900mm

3. Temperature range-- -40~+150℃

4. Humidity range-- 20~98%RH (Refer Image )

5. Controller-- LCD touch screen, programmable control temperature and humidity

Applications:

1. To simulate test environment with different temperature and humidity

2. Cyclic test includes climatic conditions: holding test, cooling-off test, heating-up test, moistening test and drying test…

3. Cable port with flexible silicone plug for cable routing to provide the condition of test unit under operation

4. Uncover test unit weakness in a short-term test with accelerated time effect

Meet Test standard(including but not limited to... ):
Compliance with specifications GB, GJB, MIL, ASTM, CNS, IEC, JIS, AATCC, DIN, Fed Test, BS and SAE.

Application Industry:

1. Electronic products: mobile phones, computers, television, video recorders and so on
2. Textile fabric products: clothes, hats, shoes, ropes
3. Wire and cable: data cable, usb,
4. Leather products: handbags, wallets, leather shoes, leather chairs
5. Instrumentation, vehicles, plastic products, metal,
6. Food, chemical, building materials, medical, aerospace
7. Others...

Standard Features:

1. Internal dimension (W*D*H)-- 1000*800*1000mm

2. External dimension (W*D*H)-- 1500*1180*1900mm

3. Temperature range-- -40~+150℃

4. Temperature fluctuation-- ±0.5℃

5. Temperature uniformity-- 2℃

6. Humidity range-- 20~98%RH (Refer Image below)

7. Humidity fluctuation-- ±2.5%RH

8. Humidity uniformity-- 3%RH

9. Cooling speed-- 1℃/min in average (without loading)

10. Heating speed-- 3℃/min in average (without loading)

11. Internal chamber material-- SUS#304 stainless steel, mirror finished

12. External chamber material-- Stainless steel

13. Cooling method-- Air cooling

14. Controller-- LCD touch screen, programmable control temperature and humidity

15. Can set different parameter for cyclic test

16. Lighting-- Heat resistance

17. Observation window-- Tempered glass

18. Testing hole-- Diameter 50mm, for cable routing

Safety Protection Device

1. Protection for leakage

2. Over-temperature

3. Compressor overvoltage and overload

4. Heater short circuit

5. Water shortage

Chamber Design Features:

1. High performance and quiet operation (68 dBA)

2. Space-saving designed for flush installation to wall

3. Full thermal break around doorframe

4. One 50mm diameter cable port o left, with flexible silicone plug

5. Accurate wet/dry-bulb humidity measurement system for easy maintain

Programmable Controller:

1. PLC controller for test chamber

2. Step types include: ramp, soak, jump, auto-start, and end

3. RS-232 interface to connect computer for output
